601D828F025HT1
UnknownVishay Dale
CAPACITOR,8200UF,25VDC,10-% TOL,50+% TOL
601D828F025HT1
UnknownVishay Dale
CAPACITOR,8200UF,25VDC,10-% TOL,50+% TOL
Description
General part information
601D828F025HT1

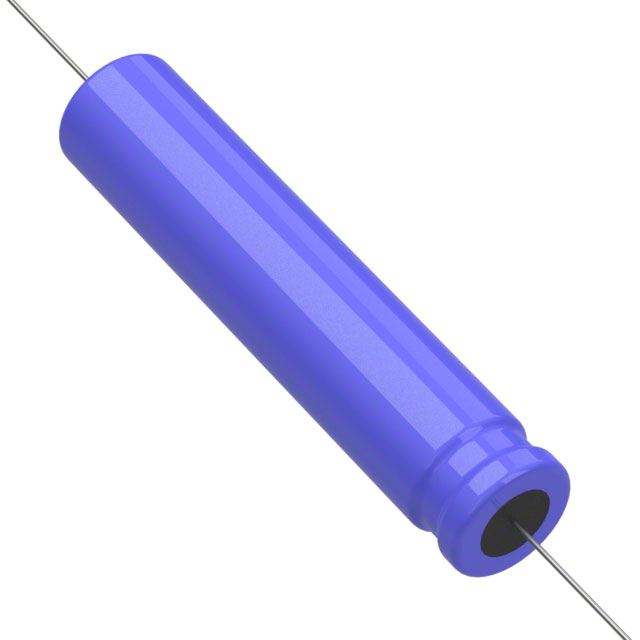

8200 µF 25 V Aluminum Electrolytic Capacitors Axial, Can 28mOhm @ 120Hz 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 601D828F025HT1 |
|---|---|
| Applications | General Purpose |
| Capacitance | 8200 µF |
| ESR (Equivalent Series Resistance) | 28 mOhm |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Ripple Current | 7.947 A, 6.91 A |
| Size / Dimension Diameter | 0.875 in |
| Size / Dimension Length | 3.625 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 50 % |
| Voltage - Rated | 25 VAC |
