XB4A-8035-D
ObsoleteOmron Electronics Inc-EMC Div
CONN PLUG 80POS SMD GOLD
XB4A-8035-D
ObsoleteOmron Electronics Inc-EMC Div
CONN PLUG 80POS SMD GOLD
Description
General part information
XB4A-8035-D

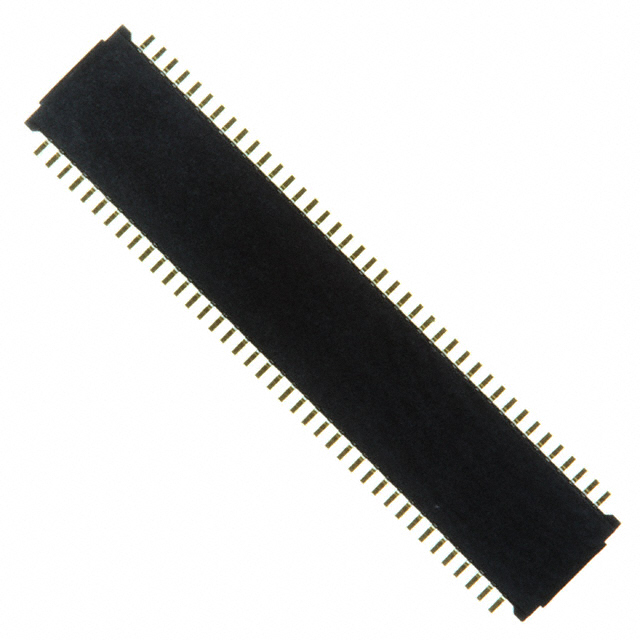

80 Position Connector Plug, Center Strip Contacts Surface Mount Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | XB4A-8035-D |
|---|---|
| Connector Type | Center Strip Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 5.9 µin |
| Height Above Board | 0.03 in |
| Mated Stacking Height | 0.9 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Pitch | 0.016 in |
