RSEG-2004
ActiveTDK Corporation

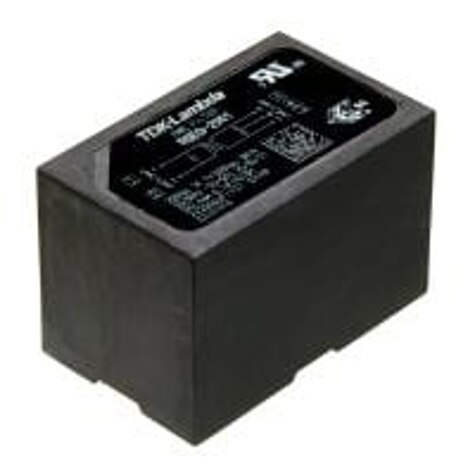

POWER LINE FILTER, GENERAL PURPOSE, 250 V, 4 A, SINGLE PHASE, 1 STAGE, THROUGH HOLE
RSEG-2004
ActiveTDK Corporation
POWER LINE FILTER, GENERAL PURPOSE, 250 V, 4 A, SINGLE PHASE, 1 STAGE, THROUGH HOLE
Description
General part information
RSEG-2004
Single Phase EMC/EMI Line Filter 4 A 250V 250V Single Stage PC Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | RSEG-2004 |
|---|---|
| Applications | General Purpose |
| Approval Agency | CSA, ENEC, UL |
| Configuration | Single Stage |
| Current | 4 A |
| Filter Type | Single Phase |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | PC Pins |
| Voltage - Rated AC | 250 V |
| Voltage - Rated DC | 250 V |
