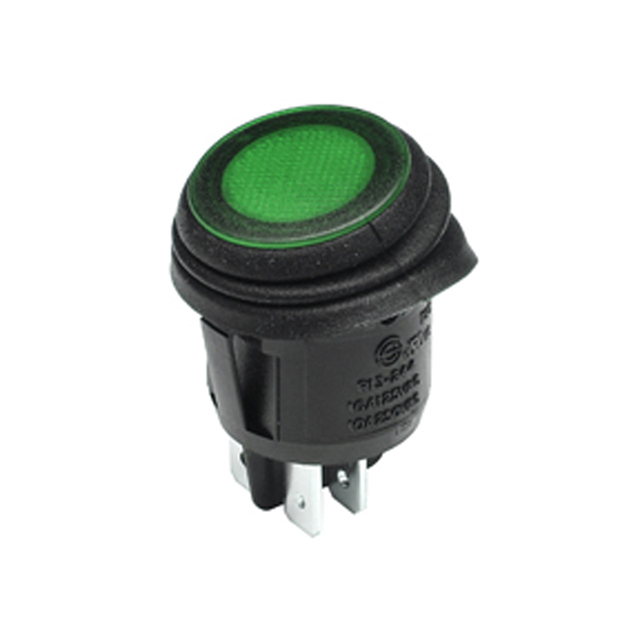

54-209W

Active

NTE Electronics, Inc

SWITCH ROCKER DPST 16A 125V

Search across all available documentation for this part.

Active

NTE Electronics, Inc

SWITCH ROCKER DPST 16A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	54-209W

Actuator Marking	No Marking
Actuator Type	Round - Illuminated
Circuit	DPST
Color - Actuator/Cap	Green
Current Rating (Amps)	16 A
Illumination Type, Color	Green, Neon
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Switch Function	On-Off
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Actuator Marking	Mounting Type	Circuit	Termination Style	Switch Function	Color - Actuator/Cap	Actuator Type	Current Rating (Amps)	Ingress Protection	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC
NTE Electronics, Inc 54-209W	No Marking	Panel Mount Snap-In	DPST	Solder Lug	On-Off	Green	Round - Illuminated	16 A	IP65 - Dust Tight Water Resistant	Green Neon	85 °C	-20 C	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch DPST 16A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available
