DSG815

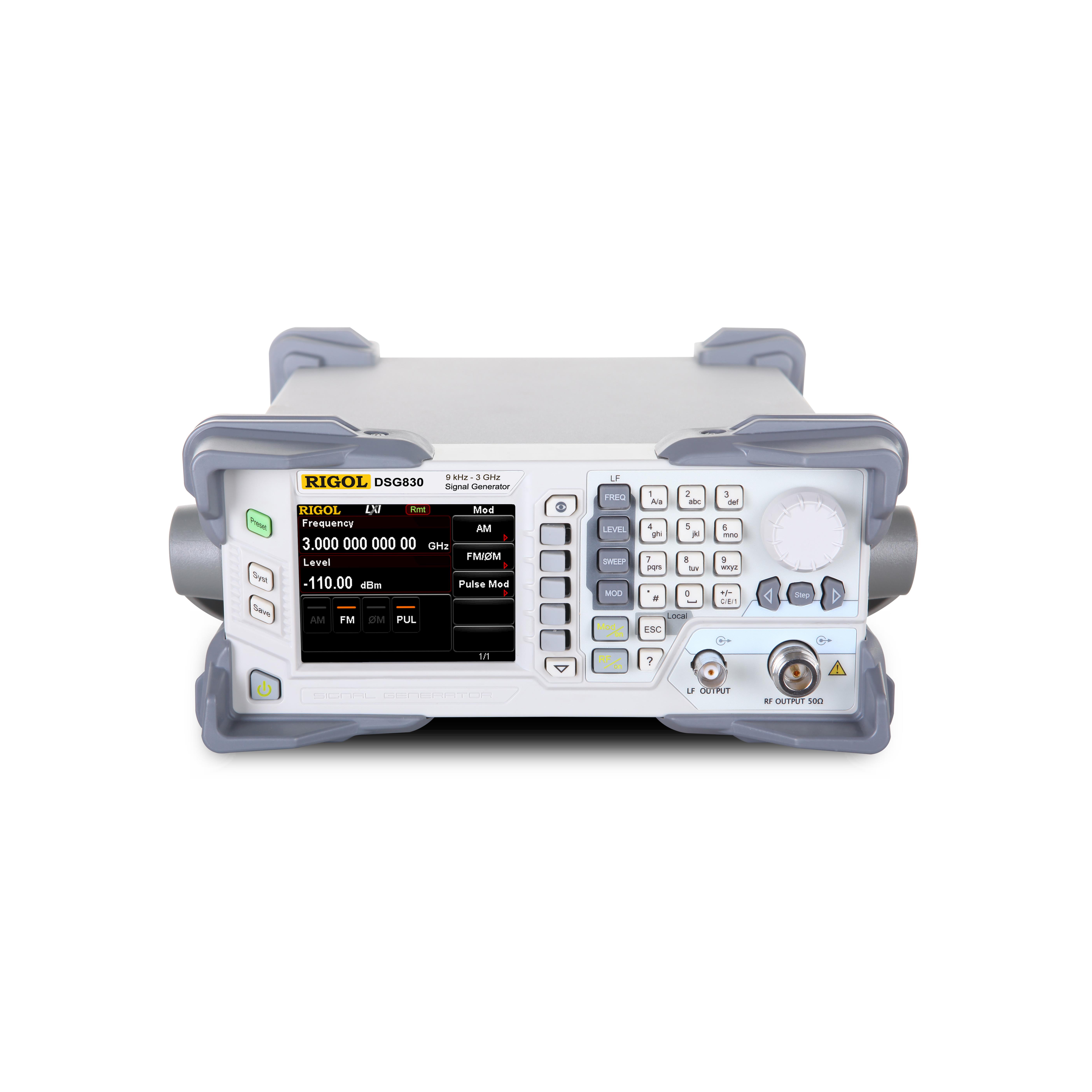

DSG815 is a DSG800 series RF signal generator. The instruments provide maximum output power up to +20dBm and low SSB phase noise -112dBc/Hz, amplitude accuracy of +/- 0.5dB, and frequency resolution of 0.01Hz at any frequency. An oven-controlled crystal oscillator time-base option provides lesser than 5ppb temperature stability and lesser than 30ppb/year aging stability, the most accurate and stable time base available in this class. For IoT and RF applications from design to debug the DSG800 series provides uncompromised RF signal generation capabilities at an unprecedented value.
Technical Specifications
Parameters and characteristics for this part
| Specification | DSG815 |
|---|---|
| Display Type | TFT - Color LCD |
| Frequency - Max | 1.5 GHz |
| Function | Sweep |
| Number of Channels | 1 |
| Supply Voltage (Max) | 240 VAC |
| Supply Voltage (Min) | 100 VAC |
| Type | Pulse Generator |
