628W11W1624-4ND

Active

EDAC Inc.

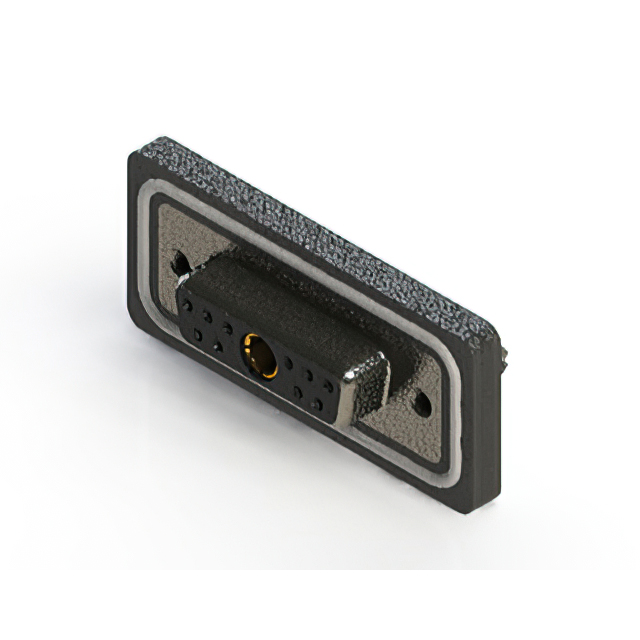

11P FEMALE PANEL MOUNTING 2 40A D-SUB / VGA CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628W11W1624-4ND

Active

EDAC Inc.

11P FEMALE PANEL MOUNTING 2 40A D-SUB / VGA CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628W11W1624-4ND

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded, Board Lock
Flange Feature	Board Side (M3)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	11
Number of Positions [custom]	10
Number of Positions [custom]	1
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	11C1, 11W1
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	125 VDC

628W11W Series

Part	Shell Size, Connector Layout	Shell Size, Connector Layout	Current Rating (Amps)	Termination	Flange Feature	Ingress Protection	Dielectric Material	Shell Material, Finish	Connector Type	Number of Rows	Contact Finish	Features	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Voltage Rating	Material Flammability Rating	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Color	Mounting Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Contact Finish Thickness
EDAC Inc. 628W11W1624-2ND	11C1 11W1	2	5 A 20 A	Solder	Board Side (M3)	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Receptacle Female Sockets	2	Gold	Board Lock Shielded	10	1	11	125 VDC	UL94 V-0	Signal and Power	-25 °C	85 °C	Combo D-Sub	Black	Panel Mount Through Hole	Copper Alloy	0.76 Ám	30 Áin
EDAC Inc. 628W11W1622-3N2	11C1 11W1	2	5 A 30 A		Housing/Shell (4-40)	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Receptacle Female Sockets	2	Gold	Shielded	10	1	11	125 VDC	UL94 V-0	Signal and Power	-25 °C	85 °C	Combo D-Sub	Black	Panel Mount Through Hole	Copper Alloy	0.76 Ám	30 Áin
EDAC Inc. 628W11W1624-1NA	11C1 11W1	2		Solder	Housing/Shell (M3)	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Receptacle Female Sockets	2	Gold	Shielded	10	1	11	125 VDC	UL94 V-0	Signal and Power	-25 °C	85 °C	Combo D-Sub	Black	Panel Mount Through Hole	Copper Alloy	0.76 Ám	30 Áin	10A 5A
EDAC Inc. 628W11W1624-1N2	11C1 11W1	2		Solder	Housing/Shell (4-40)	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Receptacle Female Sockets	2	Gold	Shielded	10	1	11	125 VDC	UL94 V-0	Signal and Power	-25 °C	85 °C	Combo D-Sub	Black	Panel Mount Through Hole	Copper Alloy	0.76 Ám	30 Áin	10A 5A
EDAC Inc. 628W11W1624-3NA	11C1 11W1	2	5 A 30 A	Solder	Housing/Shell (M3)	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Receptacle Female Sockets	2	Gold	Shielded	10	1	11	125 VDC	UL94 V-0	Signal and Power	-25 °C	85 °C	Combo D-Sub	Black	Panel Mount Through Hole	Copper Alloy	0.76 Ám	30 Áin
EDAC Inc. 628W11W1622-4N2	11C1 11W1	2	5 A 40 A		Housing/Shell (4-40)	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Receptacle Female Sockets	2	Gold	Shielded	10	1	11	125 VDC	UL94 V-0	Signal and Power	-25 °C	85 °C	Combo D-Sub	Black	Panel Mount Through Hole	Copper Alloy	0.76 Ám	30 Áin
EDAC Inc. 628W11W1622-1N2	11C1 11W1	2			Housing/Shell (4-40)	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Receptacle Female Sockets	2	Gold	Shielded	10	1	11	125 VDC	UL94 V-0	Signal and Power	-25 °C	85 °C	Combo D-Sub	Black	Panel Mount Through Hole	Copper Alloy	0.76 Ám	30 Áin	10A 5A
EDAC Inc. 628W11W1624-1ND	11C1 11W1	2		Solder	Board Side (M3)	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Receptacle Female Sockets	2	Gold	Board Lock Shielded	10	1	11	125 VDC	UL94 V-0	Signal and Power	-25 °C	85 °C	Combo D-Sub	Black	Panel Mount Through Hole	Copper Alloy	0.76 Ám	30 Áin	10A 5A
EDAC Inc. 628W11W1624-4ND	11C1 11W1	2	5 A 40 A	Solder	Board Side (M3)	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Receptacle Female Sockets	2	Gold	Board Lock Shielded	10	1	11	125 VDC	UL94 V-0	Signal and Power	-25 °C	85 °C	Combo D-Sub	Black	Panel Mount Through Hole	Copper Alloy	0.76 Ám	30 Áin
EDAC Inc. 628W11W1222-1N2	11C1 11W1	2			Housing/Shell (4-40)	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Receptacle Female Sockets	2	Gold	Shielded	10	1	11	125 VDC	UL94 V-0	Signal and Power	-25 °C	85 °C	Combo D-Sub	Black	Panel Mount Through Hole	Copper Alloy			10A 5A	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 16.95
LCSC	Piece	1	$ 42.08
		200	$ 16.29
		400	$ 15.71
		800	$ 15.43

Description

General part information

628W11W Series

11 (10 + 1 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
