PE44896
ActivePasternack
MHV FEMALE BULKHEAD MOUNT CONNEC
PE44896
ActivePasternack
MHV FEMALE BULKHEAD MOUNT CONNEC
Description
General part information
PE44896

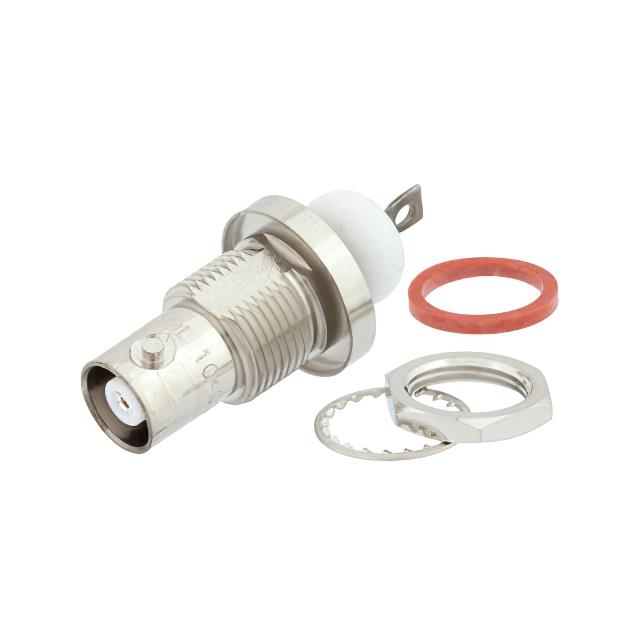

MHV Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Eyelet
Technical Specifications
Parameters and characteristics for this part
| Specification | PE44896 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Silver |
| Connector Style | MHV |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Solder Eyelet |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mating Cycles | 500 cycles |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Solder |
| Voltage Rating | 1650 V |
