SM8927
ActiveFairview Microwave

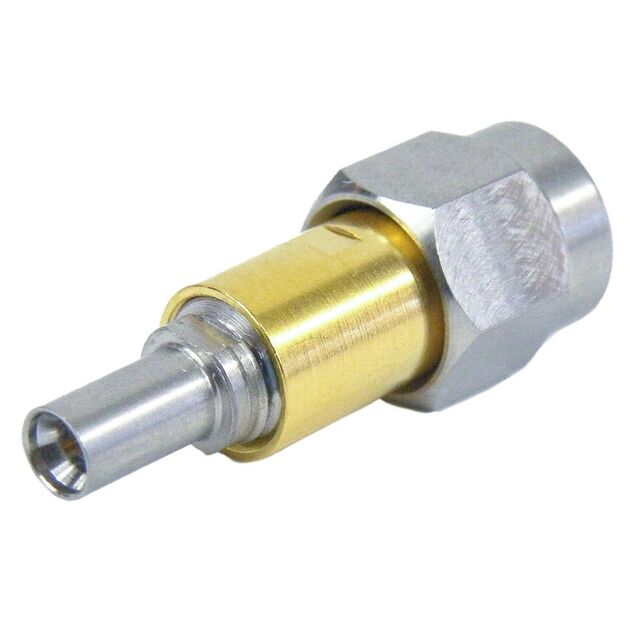

COAX ADAPT SMP MINI TO 2.92MM
SM8927
ActiveFairview Microwave
COAX ADAPT SMP MINI TO 2.92MM
Description
General part information
SM8927
Adapter Coaxial Connector 2.92mm (OS-2.9) Plug, Male Pin To SMP Mini Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SM8927 |
|---|---|
| Adapter Series | Mini, SMP |
| Adapter Series Size | 2.92 mm |
| Adapter Type | Plug to Plug |
| Body Finish | Gold |
| Body Material | Beryllium Copper, Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male |
| Conversion Type | Between Series |
| Convert From (Adapter End) Plug Size | 2.92 mm |
| Convert From (Adapter End) Type | Male Pin, (OS-2.9) Plug |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | SMP Mini Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max | 40 Gbps |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Style | Straight |
