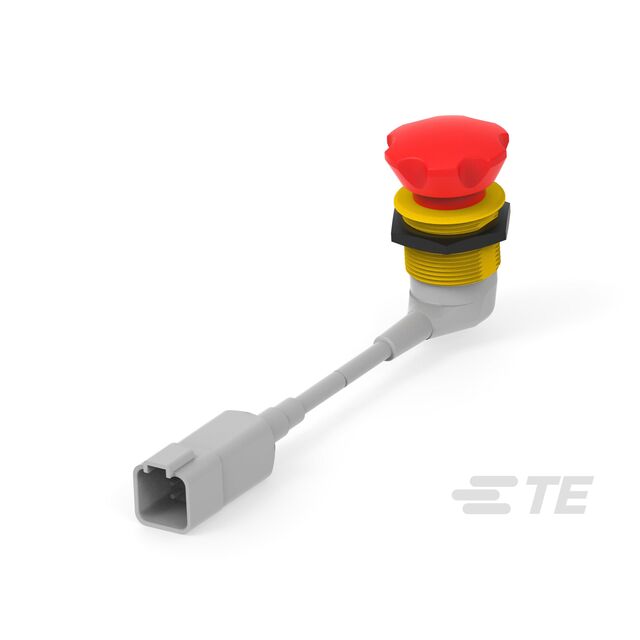

EMERGENCY SWITCH ES-2101-T422-020C 912

Find alt
ES-2101-T422-020C 912

ES-2101-T422-020C 912

Active
TE Connectivity AMP Connectors

EMERGENCY SWITCH ES-2101-T422-020C 912

Find alt

Description

General part information

KISSLING Series ES Series

Emergency Stop Switch, Single Actuator, Flush Actuator, Illuminated, Process Sealed, Snap Action, Non-Tactile Feedback, Maintained, KISSLING Series ES

Technical Specifications

Parameters and characteristics for this part

SpecificationES-2101-T422-020C 912
Circuit3PST-NO
Current Rating10 A
Ingress Protection DescriptionWater Resistant, Dust Tight, Waterproof
Ingress Protection IP RatingIP67, IP69K
Mounting TypeFront, Panel Mount
Operating Temperature (Max)85 °C
Operating Temperature (Min)-40 °C
Panel Cutout Diameter30.5 mm
Panel Cutout ShapeCircular
Reset OperationTwist
Switch FunctionOff-On
Termination StyleWire Leads
Voltage Rating - DC32 V
