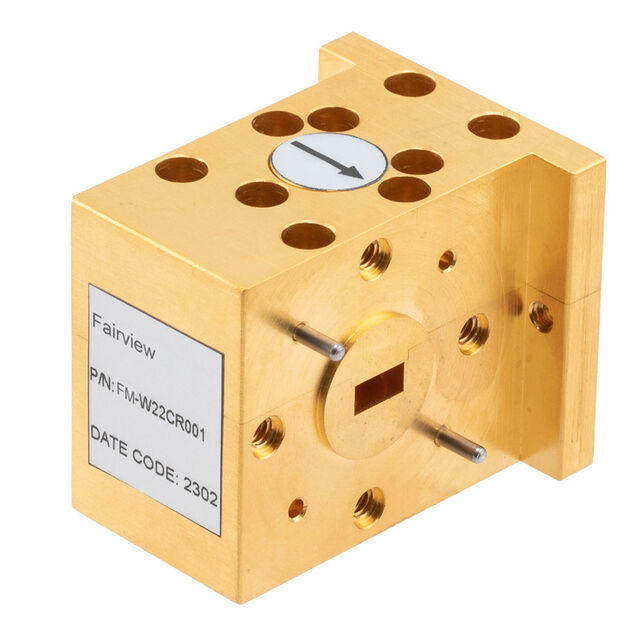

FM-W22CR001
ActiveFairview Microwave
WG CIRCULATOR WR-22 32.9-40 GHZ
FM-W22CR001
ActiveFairview Microwave
WG CIRCULATOR WR-22 32.9-40 GHZ
Description
General part information
FM-W22CR001
WG CIRCULATOR WR-22 32.9-40 GHZ
Technical Specifications
Parameters and characteristics for this part
| Specification | FM-W22CR001 |
|---|---|
| Frequency (Max) | 40 GHz |
| Frequency (Min) | 32.9 GHz |
| Insertion Loss (Max) | 0.4 dB |
| Isolation (Min) | 15 dB |
| Package / Case | Module |
| Package Name | Module |
| Power - Average Forward | 5 W |
| Type | Circulator |
| VSWR | 1.4 |
