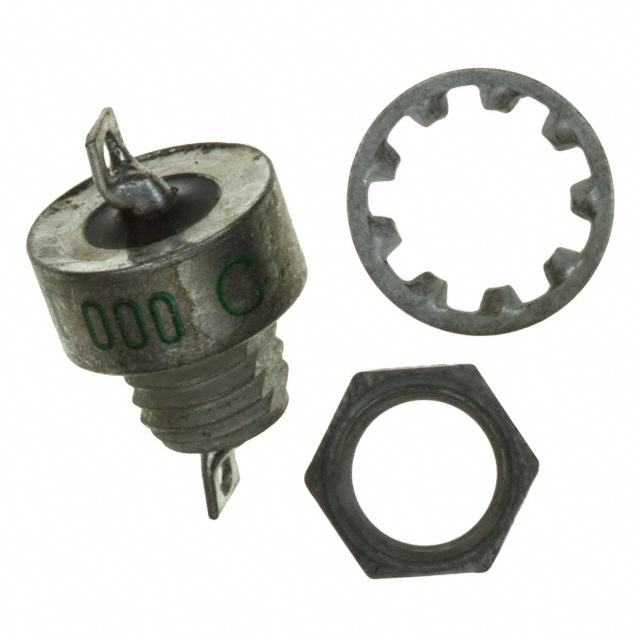

4601-000LF
ActiveTusonix a Subsidiary of CTS Electronic Components
CAP FEEDTHRU 70V AXIAL
4601-000LF
ActiveTusonix a Subsidiary of CTS Electronic Components
CAP FEEDTHRU 70V AXIAL
Description
General part information
4601-000LF
Feed Through Capacitor 70V 15 A Axial, Bushing - 2 Solder Eyelets
Technical Specifications
Parameters and characteristics for this part
| Specification | 4601-000LF |
|---|---|
| Current | 15 A |
| Insertion Loss | 70 dB |
| Package / Case | Bushing - 2 Solder Eyelets, Axial |
| Package Leads | 2 Leads |
| Package Name | Axial, Bushing |
| Size / Dimension Diameter | 0.385 in |
| Size / Dimension Length | 0.362 in |
| Temperature Coefficient | X7W |
| Thread Pitch (TPI) | 28 TPI |
| Thread Size (Nominal) | 0.25 in |
| Type | Feed Through |
| Voltage - Rated | 70 VAC |
