PSD0603130
ActivePUI Audio, Inc.

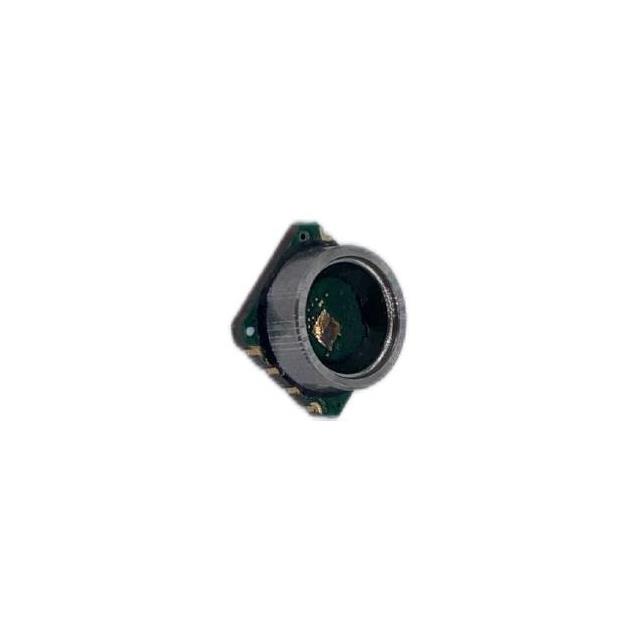

PRESSURE SENSOR 130KPA 3VDC
PSD0603130
ActivePUI Audio, Inc.
PRESSURE SENSOR 130KPA 3VDC
Description
General part information
PSD0603130
Pressure Sensor 4.35PSI ~ 29.01PSI (30kPa ~ 200kPa) Absolute 16 b 8-BLGA
Technical Specifications
Parameters and characteristics for this part
| Specification | PSD0603130 |
|---|---|
| Accuracy | 0.35 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure | 289.85 PSI |
| Mounting Type | Surface Mount |
| Operating Pressure (Max) | 29.01 PSI |
| Operating Pressure (Min) | 4.35 PSI |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Bits | 16 b |
| Output Type | I2C, SPI |
| Package / Case | 8-BLGA |
| Package Length | 6.4 mm |
| Package Name | 8-LGA |
| Package Width | 6.2 mm |
| Port Style | No Port |
| Pressure Type | Absolute |
| Voltage - Supply (Maximum) | 5 V |
| Voltage - Supply (Minimum) | 1.8 V |
