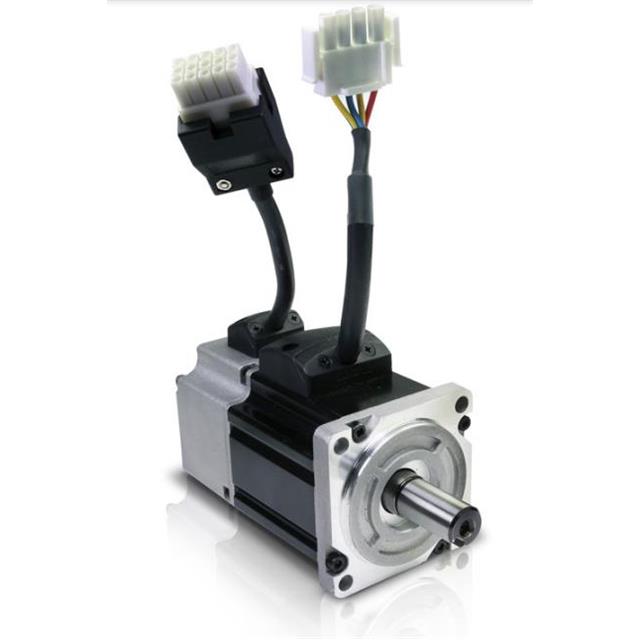

400 WATT BLDC SERVO MOTOR - 60 M
SBL60D2-03
ActiveLin Engineering
400 WATT BLDC SERVO MOTOR - 60 M
Description
General part information
SBL60D2-03
Brushless (BLDC) DC Motor Standard 3000 RPM 400W Incremental 48VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | SBL60D2-03 |
|---|---|
| Diameter - Shaft | 0.55 in |
| Encoder Type | Incremental |
| Function | Standard |
| Length - Shaft and Bearing | 1.18 in |
| Motor Type | Brushless (BLDC) |
| Mounting Hole Spacing | 2.75 in |
| Power - Rated | 400 W |
| RPM | 3000 RPM |
| Size / Dimension Length | 2.36 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 2.36 in |
| Termination Style | Wire Leads with Connector |
| Torque - Max Momentary (mNm) | 3400 mNm |
| Torque - Max Momentary (oz-in) | 481.5 oz-in |
| Torque - Rated (mNm) | 1270 mNm |
| Torque - Rated (oz-in) | 179.8 oz-in |
| Type | DC Motor |
| Voltage - Rated | 48 VDC |
