Description
General part information

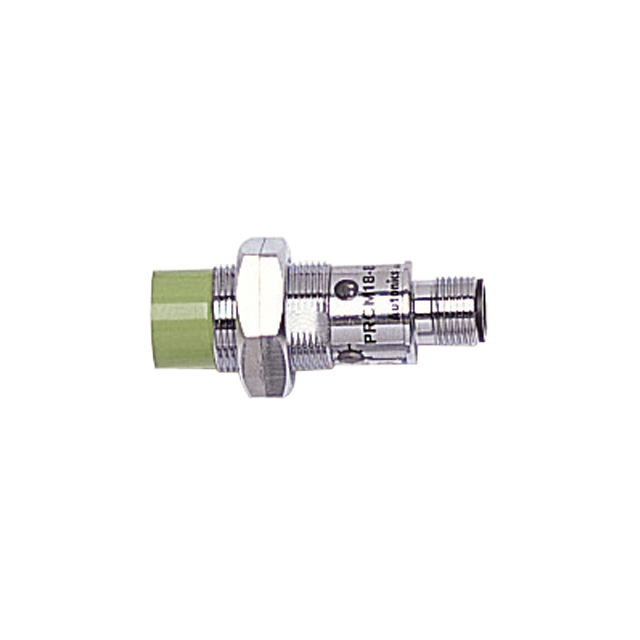

PRCM18-8AC
INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, PRCM SERIES, M18, 8.8 MM, SPST-NC, 10 TO 30 VDC, CONNECTOR
Technical Specifications
Parameters and characteristics for this part
| Specification | PRCM18-8AC |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | NC, 2-Wire |
| Package / Case | Cylinder, Threaded - M18 |
| Response Frequency | 20 Hz |
| Sensing Distance | 0.315 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 264 VAC |
| Voltage - Supply (Minimum) | 85 VAC |
