2450LP15B0050001E
ActiveJohanson Technology Inc.

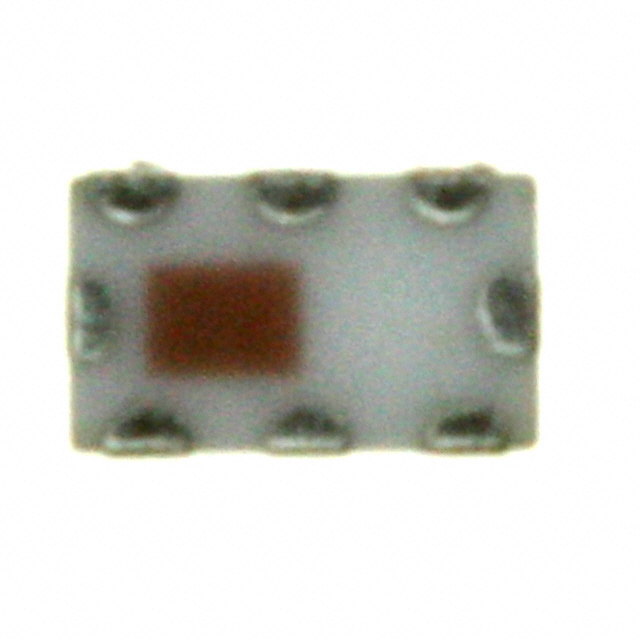

RF FILTER LOW PASS 2.45GHZ 0805
2450LP15B0050001E
ActiveJohanson Technology Inc.
RF FILTER LOW PASS 2.45GHZ 0805
Description
General part information
2450LP15B0050001E
2.45GHz Center Frequency Low Pass RF Filter (Radio Frequency) 100MHz Bandwidth 0.5dB 0805 (2012 Metric), 8 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | 2450LP15B0050001E |
|---|---|
| Bandwidth | 100 MHz |
| Filter Type | Low Pass |
| Frequency (Center) | 2.45 GHz |
| Height (Max) | 0.041 in |
| Insertion Loss | 0.5 dB |
| Mounting Type | Surface Mount |
| Package Name | 0805 |
| Pad Count | 8 PC Pad |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
