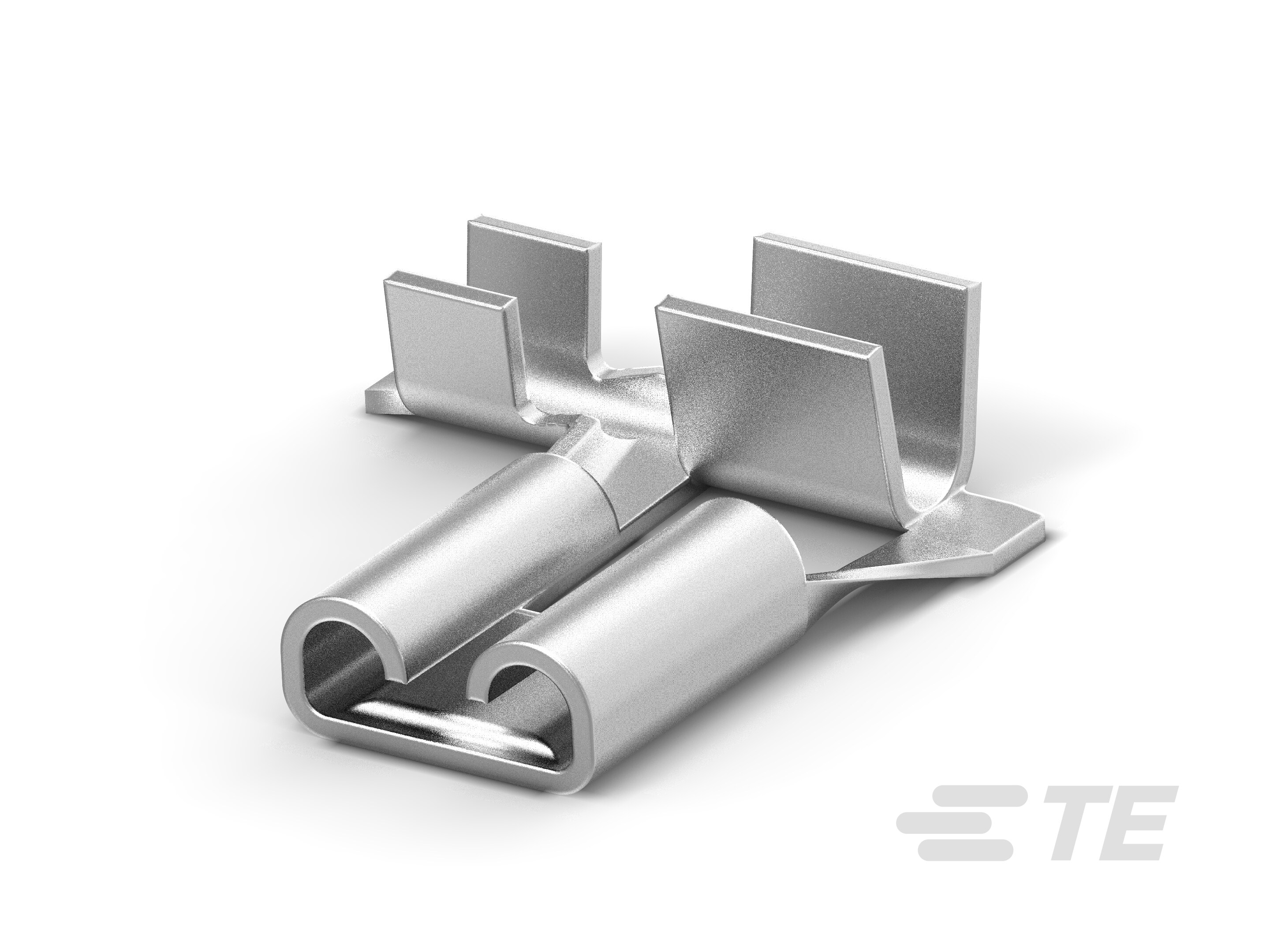

RCPT.187 FL/FAST AMVR .157TPB-1217417-1

1217417-1

Active
TE Connectivity AMP Connectors

RCPT.187 FL/FAST AMVR .157TPB ROHS COMPLIANT: YES

Find alt
RCPT.187 FL/FAST AMVR .157TPB-1217417-1

1217417-1

Active
TE Connectivity AMP Connectors

RCPT.187 FL/FAST AMVR .157TPB ROHS COMPLIANT: YES

Find alt

Description

General part information

1217417-1

Quick Disconnect Receptacle, 18 – 14 AWG, .82 – 2.08 mm² Wire, 2000 – 4050 CMA, 4.75 mm [.187 in] Tab Width, Flag, Brass, Tin Plating, Strip, AMPLIVAR

Technical Specifications

Parameters and characteristics for this part

Specification1217417-1
Contact FinishTin
Contact MaterialBrass
GenderFemale
InsulationNon-Insulated
Mounting TypeRight Angle, Free Hanging (In-Line)
Tab Length0.24 in
Tab Thickness0.032 in
Tab Width0.187 in
Terminal Angle90 °
Terminal TypeFlag, Angled
TerminationCrimp
Wire Gauge (AWG) (Max)18 AWG
Wire Gauge (AWG) (Min)14 AWG
