BAC520
ActivePasternack
CONN TYPE F F BHD RG59 CRIMP
BAC520
ActivePasternack
CONN TYPE F F BHD RG59 CRIMP
Description
General part information
BAC520

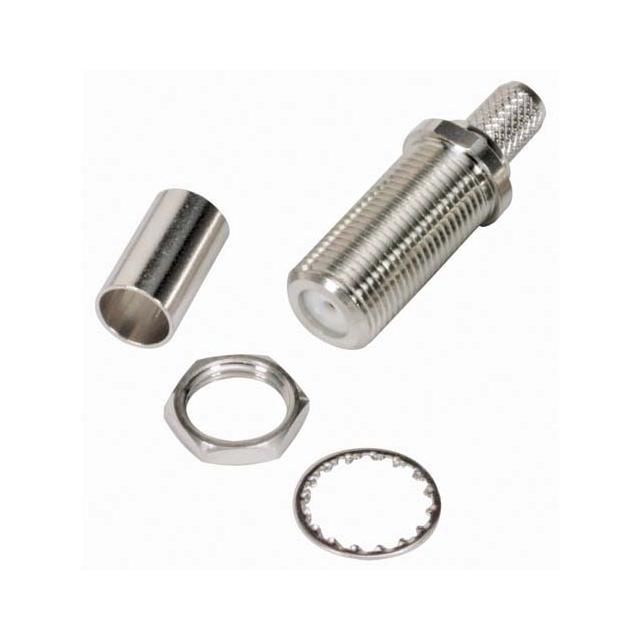

F Type Connector Receptacle, Female Socket 75 Ohms Panel Mount Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | BAC520 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-59 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | F Type |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
