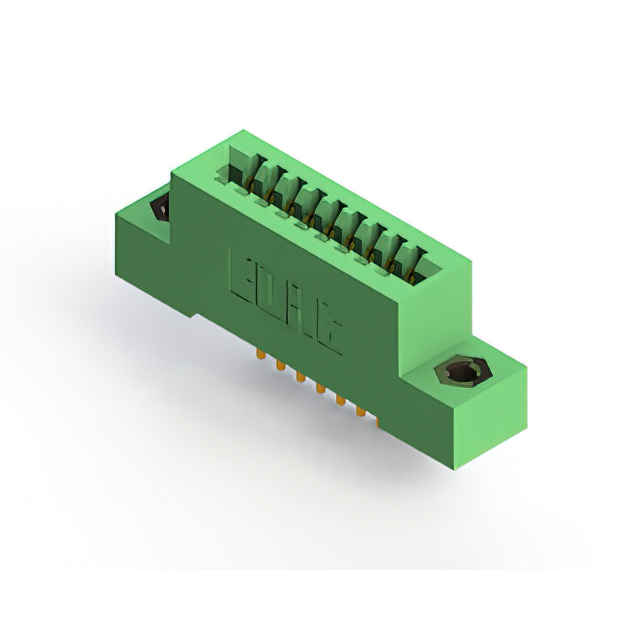

842-009-523-107
ActiveEDAC Inc.
CONN EDGE SINGLE FML 9POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
842-009-523-107
ActiveEDAC Inc.
CONN EDGE SINGLE FML 9POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-009-523-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Number of Positions/Bay/Row [custom] | 9 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
842-009 Series
| Part | Contact Material | Number of Positions/Bay/Row [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Read Out | Card Type | Contact Type | Contact Finish | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Gender | Color | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Pitch [x] | Pitch [x] | Material - Insulation | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | 9 | 125 °C | -40 °C | Solder | Single | Non Specified - Single Edge | Cantilever | Gold | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 9 | 10 Áin | 0.25 Ám | Female | Green | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 2.54 mm | 0.1 in | Diallyl Phthalate (DAP) | Through Hole Right Angle |
EDAC Inc. | Copper Alloy | 9 | 125 °C | -40 °C | Wire Wrap | Single | Non Specified - Single Edge | Cantilever | Gold | 9 | 10 Áin | 0.25 Ám | Female | Green | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 2.54 mm | 0.1 in | Diallyl Phthalate (DAP) | Through Hole | |||
EDAC Inc. | Copper Alloy | 9 | 125 °C | -40 °C | Solder | Single | Non Specified - Single Edge | Cantilever | Gold | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 9 | 10 Áin | 0.25 Ám | Female | Green | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 2.54 mm | 0.1 in | Diallyl Phthalate (DAP) | Through Hole |
EDAC Inc. | Copper Alloy | 9 | 125 °C | -40 °C | Solder | Single | Non Specified - Single Edge | Cantilever | Gold | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 9 | 10 Áin | 0.25 Ám | Female | Green | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 2.54 mm | 0.1 in | Diallyl Phthalate (DAP) | Through Hole |
EDAC Inc. | Copper Alloy | 9 | 125 °C | -40 °C | Wire Wrap | Single | Non Specified - Single Edge | Cantilever | Gold | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 9 | 10 Áin | 0.25 Ám | Female | Green | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 2.54 mm | 0.1 in | Diallyl Phthalate (DAP) | Through Hole |
EDAC Inc. | Copper Alloy | 9 | 125 °C | -40 °C | Wire Wrap | Single | Non Specified - Single Edge | Cantilever | Gold | 9 | 10 Áin | 0.25 Ám | Female | Green | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 2.54 mm | 0.1 in | Diallyl Phthalate (DAP) | Through Hole | |||
EDAC Inc. | Copper Alloy | 9 | 125 °C | -40 °C | Solder | Single | Non Specified - Single Edge | Cantilever | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 9 | 10 Áin | 0.25 Ám | Female | Green | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 2.54 mm | 0.1 in | Diallyl Phthalate (DAP) | Through Hole | ||
EDAC Inc. | Copper Alloy | 9 | 125 °C | -40 °C | Wire Wrap | Single | Non Specified - Single Edge | Cantilever | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 9 | 10 Áin | 0.25 Ám | Female | Green | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 2.54 mm | 0.1 in | Diallyl Phthalate (DAP) | Through Hole | ||
EDAC Inc. | Copper Alloy | 9 | 125 °C | -40 °C | Solder | Single | Non Specified - Single Edge | Cantilever | Gold | Flush Mount M3 Threaded Insert Top Opening | 9 | 10 Áin | 0.25 Ám | Female | Green | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 2.54 mm | 0.1 in | Diallyl Phthalate (DAP) | Through Hole | ||
EDAC Inc. | Copper Alloy | 9 | 125 °C | -40 °C | Solder | Single | Non Specified - Single Edge | Cantilever | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 9 | 10 Áin | 0.25 Ám | Female | Green | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 2.54 mm | 0.1 in | Diallyl Phthalate (DAP) | Through Hole Right Angle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
842-009 Series
9 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
