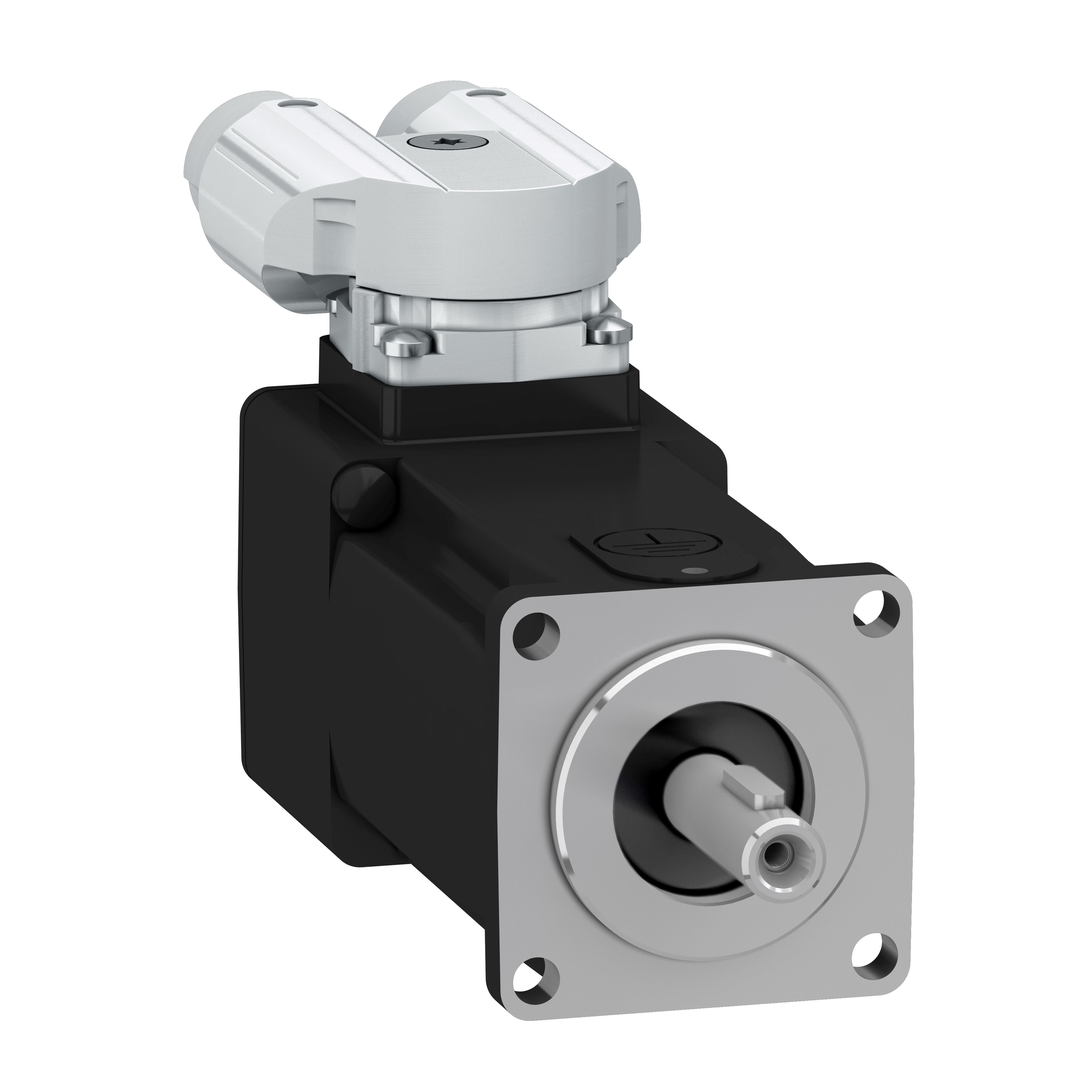

BSH0402P16A2A
ActiveSCHNEIDER ELECTRIC
MOTOR 40MM IP54 KEY ENC SINGLE16
BSH0402P16A2A
ActiveSCHNEIDER ELECTRIC
MOTOR 40MM IP54 KEY ENC SINGLE16
Description
General part information
BSH0402P16A2A
AC Motor Servomotor 10000 RPM 289W 400VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | BSH0402P16A2A |
|---|---|
| Diameter - Shaft | 0.315 in |
| Features | Key |
| Function | Servomotor |
| Length - Shaft and Bearing | 0.98 in |
| Mounting Hole Spacing | 1.18 in |
| Power - Rated | 289 W |
| RPM | 10000 RPM |
| Size / Dimension Length | 1.57 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 1.57 in |
| Termination Style | Connector |
| Torque - Rated (mNm) | 364 mNm |
| Torque - Rated (oz-in) | 51.55 oz-in |
| Type | AC Motor |
| Voltage - Rated | 400 V |
