Description
General part information

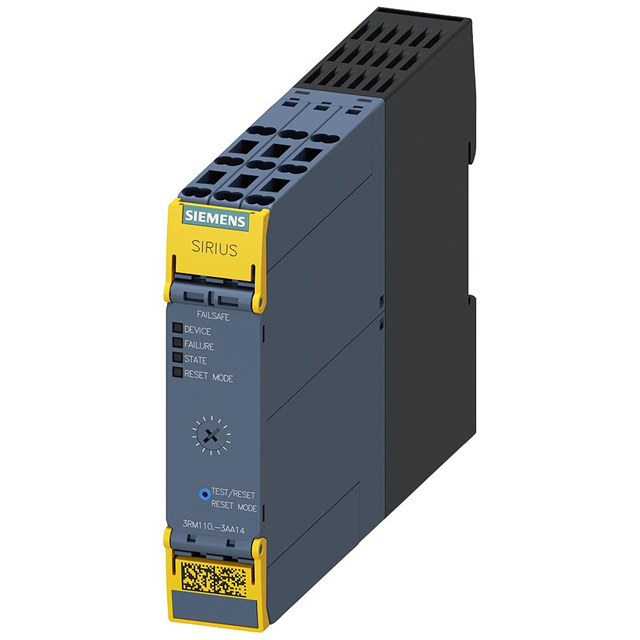

3RM11023AA14
Motor Starter 110 ~ 230VAC/DC Supply 2A 48 ~ 500V Load
Technical Specifications
Parameters and characteristics for this part
| Specification | 3RM11023AA14 |
|---|---|
| Control / Drive Type | Motor Starter |
| Current - Output | 2 A |
| Motor Type | AC Motor |
| Mounting Type | DIN Rail |
| Number of Motors | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Type | Module |
| Voltage - Load (Max) | 500 V |
| Voltage - Load (Min) | 48 V |
| Voltage - Supply (Maximum) | 230 VAC |
| Voltage - Supply (Minimum) | 110 VAC |
| Wattage - Load | 750 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
