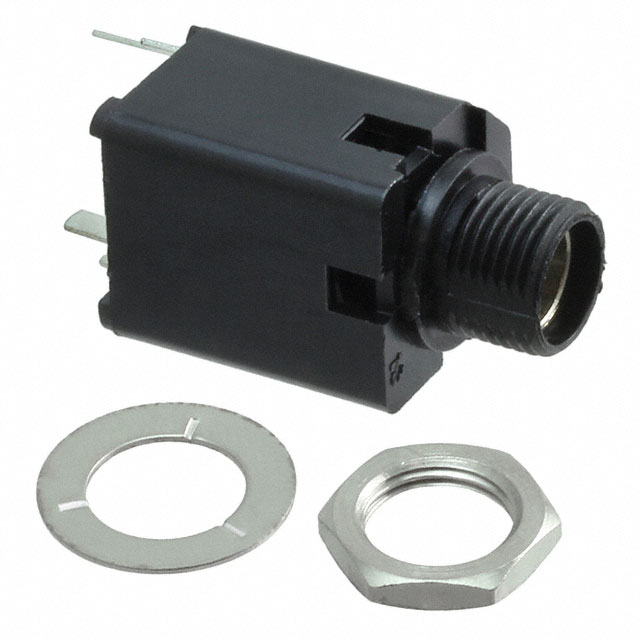

N111PCX

Active

Switchcraft Inc.

CONN JACK MONO 6.35MM PNL MNT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN JACK MONO 6.35MM PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	N111PCX

Actual Diameter [diameter]	0.25 in
Actual Diameter [diameter]	6.35 mm
Body Color	Black
Connector Type	Phone Jack
Contact Material	Brass
Contact Material - Plating	Tin
Current Rating (Amps)	0.25 A
Features	Thread Lock, Mounting Hardware
Gender	Female
Includes	Connector, Washer, Nut
Internal Switch(s)	False
Mounting Type	Through Hole, Panel Mount
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Panel Hole Size	0.375 in
Panel Hole Size	9.52 mm
Shielding	Unshielded
Signal Lines	Mono
Termination	Solder
Thread Size	3/8"-32
Voltage - Rated [custom]	48 VDC

CONN JACK MONO 6.35MM PNL MNT

Part	Voltage - Rated [custom]	Current Rating (Amps)	Panel Hole Size	Panel Hole Size	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Contact Material	Features	Shielding	Signal Lines	Thread Size	Gender	Mounting Type	Internal Switch(s)	Contact Material - Plating	Body Color	Connector Type	Includes	Actual Diameter [diameter]	Actual Diameter [diameter]	Termination
Switchcraft Inc. N111PCX	48 VDC	0.25 A	0.375 in	9.52 mm	2	2	Brass	Mounting Hardware, Thread Lock	Unshielded	Mono	3/8"-32	Female	Panel Mount, Through Hole		Tin	Black	Phone Jack	Connector, Nut, Washer	0.25 in	6.35 mm	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6.35mm (0.250", 1/4") - Headphone Phone Jack Mono Connector Solder
