XU9N18NP341WD
ActiveSCHNEIDER ELECTRIC

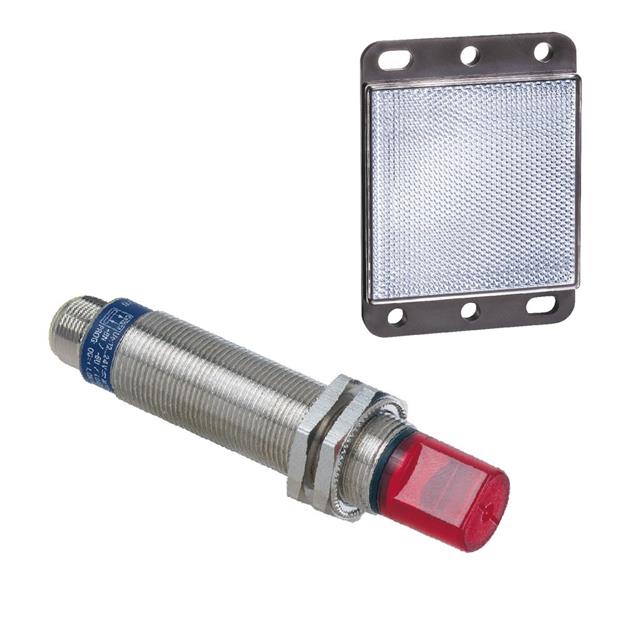

PHOTOELECTRIC SENSOR 18MM SS NPN
XU9N18NP341WD
ActiveSCHNEIDER ELECTRIC
PHOTOELECTRIC SENSOR 18MM SS NPN
Description
General part information
XU9N18NP341WD
Reflective, Polarized Optical Sensor 78.740" (2m) NPN-NC/NO
Technical Specifications
Parameters and characteristics for this part
| Specification | XU9N18NP341WD |
|---|---|
| Adjustment Type | Adjustable |
| Connection Method | Connector, M12 |
| Ingress Protection | IP67 |
| Light Source | Yellow LED, Green LED |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | NO, NPN-NC |
| Response Time | 1 ms |
| Sensing Distance | 78.74 " |
| Sensing Method | Polarized, Reflective |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
