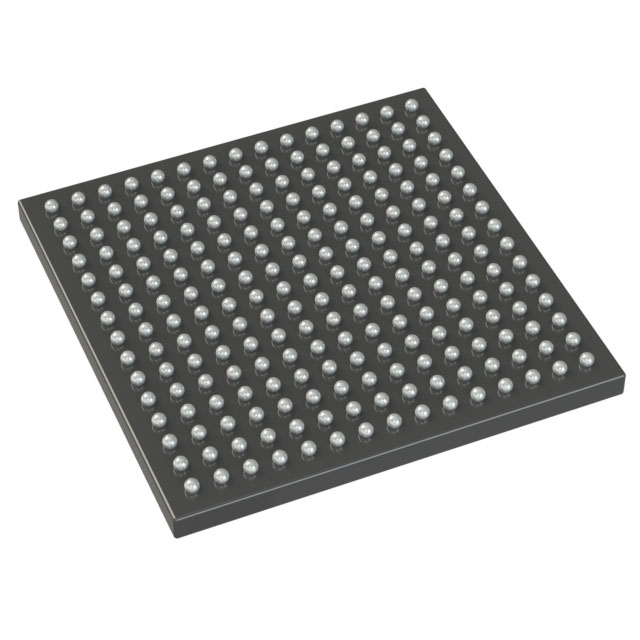

VSC8248YJH-02
ActiveCLOCK & DATA RECOVERY IC, 11.3 GBPS, 1.2 V TO 3.3 V, 225 PINS, FCCSP
Deep-Dive with AI
Search across all available documentation for this part.
VSC8248YJH-02
ActiveCLOCK & DATA RECOVERY IC, 11.3 GBPS, 1.2 V TO 3.3 V, 225 PINS, FCCSP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VSC8248YJH-02 | VSC8248 Series |
|---|---|---|
| - | - | |
| Differential - Input:Output [custom] | True | True |
| Differential - Input:Output [custom] | True | True |
| Main Purpose | Ethernet | Ethernet |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 4 | 4 |
| Operating Temperature [Max] | 110 °C | 110 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 225-BGA, FCBGA | 225-BGA, FCBGA |
| PLL | False | False |
| Ratio - Input:Output | 4:4 | 4:4 |
| Supplier Device Package | 225-FCBGA (16x16) | 225-FCBGA (16x16) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 84 | $ 123.00 | |
| Microchip Direct | TRAY | 1 | $ 147.62 | |
| 25 | $ 123.00 | |||
| 100 | $ 111.84 | |||
| 1000 | $ 103.33 | |||
| 5000 | $ 98.02 | |||
| 10000 | $ 93.19 | |||
VSC8248 Series
IC INTERFACE CONTROLLER
| Part | Supplier Device Package | PLL | Mounting Type | Differential - Input:Output [custom] | Differential - Input:Output [custom] | Main Purpose | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Number of Circuits | Ratio - Input:Output |
|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology VSC8248KITEV | |||||||||||
Microchip Technology VSC8248YJH-02 | |||||||||||
Microchip Technology VSC8248YJH-02 | 225-FCBGA (16x16) | Surface Mount | Ethernet | -40 °C | 110 °C | 225-BGA, FCBGA | 4 | 4:4 | |||
Microchip Technology VSC8248YJH-01 |
Description
General part information
VSC8248 Series
Microchip's complimentary and confidential [**MicroCHECK**](https://www.microchip.com/en-us/support/design-help/design-check-services) design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. [**MicroCHECK**](https://www.microchip.com/en-us/support/design-help/design-check-services) service is subject to Microchip's [**Program Terms and Conditions**](https://www.microchip.com/en-us/support/design-help/design-check-services/design-check-services-program-terms-and-conditions) and requires a myMicrochip account.
