Description
General part information

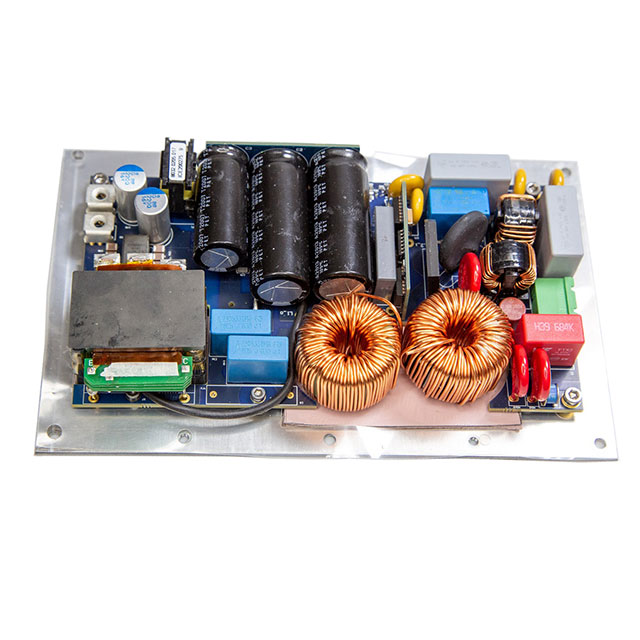

EVAL500W5GPSUTOBO1
Please get in touch with the support center to reserve your board upfront. The EVAL_500W_5G_PSU demonstrates a power supply from AC (85-305 VAC) to DC (12 VDC) with a rated output power of 500 W. The target applications of this demo board are power supplies for5G telecom small cells. With a height of 27 mm only, this PSU comes with high efficiency (96.5% peak efficiency at 230 VAC) and fanless cooling enabled by600 V CoolMOS™ superjunction MOSFETshoused in the D-DPAK package.
Technical Specifications
Parameters and characteristics for this part
| Specification | EVAL500W5GPSUTOBO1 |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 42 A |
| Isolated Output Count | 2 count |
| Main Purpose | AC/DC Converter |
| Output Type | Isolated |
| Power - Output | 500 W |
| Regulator Topology | Boost |
| Supplied Contents | Board(s) |
| Total Output Count | 2 |
| Utilized IC / Part | ICE1HS01G, ICE3PCS01G |
| Voltage - Input (AC) Maximum | 240 VAC |
| Voltage - Input (AC) Minimum | 100 VAC |
| Voltage - Output | 12 V |
