1-794617-2

Active

TE Connectivity AMP Connectors

CONNECTOR HOUSING, MICRO MATE-N-LOK SERIES, RECEPTACLE, 12 POSITIONS, 3 MM

Find alt

Alpha

1-794617-2

Active

TE Connectivity AMP Connectors

CONNECTOR HOUSING, MICRO MATE-N-LOK SERIES, RECEPTACLE, 12 POSITIONS, 3 MM

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

Micro MATE-N-LOK Series

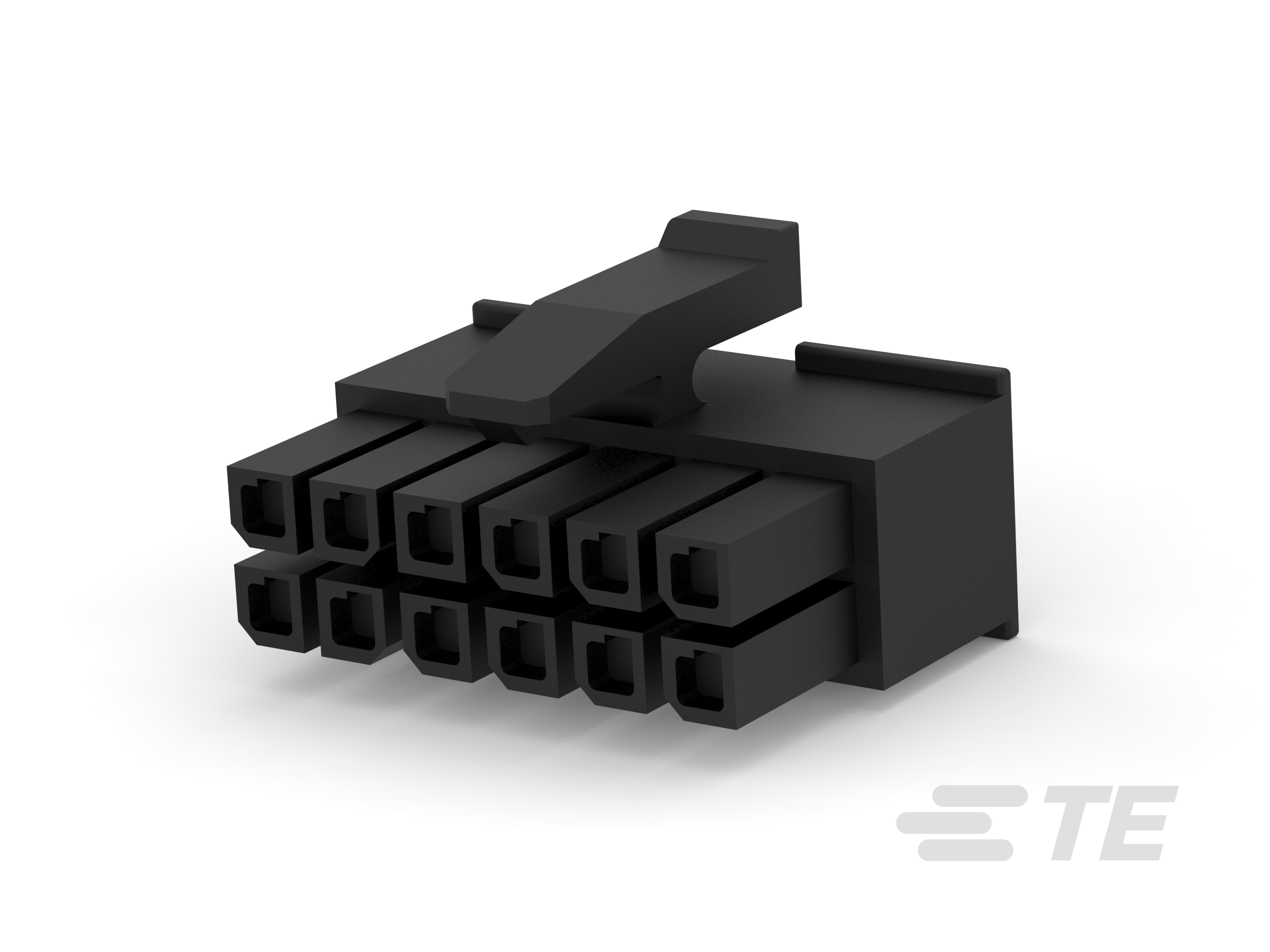

The 1-794617-2 is a 12-position 2-row black Receptacle Housing, made of nylon 66/6 and is used with micro MATE-N-LOK connectors. The connectors with dual locking lances provide optimum contact stability pins and sockets can be intermixed in the same housing.

Technical Specifications

Parameters and characteristics for this part

Specification	1-794617-2

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.118 in
Row Spacing	0.118 in

Micro MATE-N-LOK Series

...

Part	Insulation Color	Fastening Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Number of Positions Loaded	Features	Insulation Material	Mounting Type	Current Rating	Pitch - Mating	Insulation Height	Connector Type	Contact Finish Thickness - Mating	Contact Type	Row Spacing - Mating	Contact Shape	Number of Positions	Contact Finish - Mating	Material Flammability Rating	Contact Finish - Post	Termination	Number of Rows	Style	Shrouding	Voltage Rating	Applications	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 794619-6	Black	Locking Ramp	-40 °C	105 °C	Brass	All	Board Lock	Nylon Polyamide (PA)	Right Angle Through Hole	Varies by Wire Gauge	0.118 in	0.29 in	Header	15 µin	Male Pin	0.118 in	Square	6	Gold Gold-Palladium	UL94 V-0	Tin-Lead	Solder	2	Board Cable/Wire	Shrouded - 4 Wall	250 V	General Purpose	100 Ąin
TE Connectivity AMP Connectors 2-794619-0	Black	Locking Ramp	-40 °C	105 °C	Brass	All	Board Lock	Nylon Polyamide (PA)	Right Angle Through Hole	Varies by Wire Gauge	0.118 in	0.29 in	Header	15 µin	Male Pin	0.118 in	Square	20	Gold Gold-Palladium	UL94 V-0	Tin-Lead	Solder	2	Board Cable/Wire	Shrouded - 4 Wall	250 V	General Purpose	100 Ąin
TE Connectivity AMP Connectors 1-794619-0	Black	Locking Ramp	-40 °C	105 °C	Brass	All	Board Lock	Nylon Polyamide (PA)	Right Angle Through Hole	Varies by Wire Gauge	0.118 in	0.29 in	Header	15 µin	Male Pin	0.118 in	Square	10	Gold Gold-Palladium	UL94 V-0	Tin-Lead	Solder	2	Board Cable/Wire	Shrouded - 4 Wall	250 V	General Purpose	100 Ąin
TE Connectivity AMP Connectors 794619-2	Black	Locking Ramp	-40 °C	105 °C	Brass	All	Board Lock	Nylon Polyamide (PA)	Right Angle Through Hole	Varies by Wire Gauge		0.29 in	Header	15 µin	Male Pin	0.118 in	Square	2	Gold Gold-Palladium	UL94 V-0	Tin-Lead	Solder	2	Board Cable/Wire	Shrouded - 4 Wall	250 V	General Purpose	100 Ąin
TE Connectivity AMP Connectors 794619-8	Black	Locking Ramp	-40 °C	105 °C	Brass	All	Board Lock	Nylon Polyamide (PA)	Right Angle Through Hole	Varies by Wire Gauge	0.118 in	0.29 in	Header	15 µin	Male Pin	0.118 in	Square	8	Gold Gold-Palladium	UL94 V-0	Tin-Lead	Solder	2	Board Cable/Wire	Shrouded - 4 Wall	250 V	General Purpose	100 Ąin
TE Connectivity AMP Connectors 2-794619-4	Black	Locking Ramp	-40 °C	105 °C	Brass	All	Board Lock	Nylon Polyamide (PA)	Right Angle Through Hole	Varies by Wire Gauge	0.118 in	0.29 in	Header	15 µin	Male Pin	0.118 in	Square	24 pos	Gold Gold-Palladium	UL94 V-0	Tin-Lead	Solder	2	Board Cable/Wire	Shrouded - 4 Wall	250 V	General Purpose	100 Ąin
