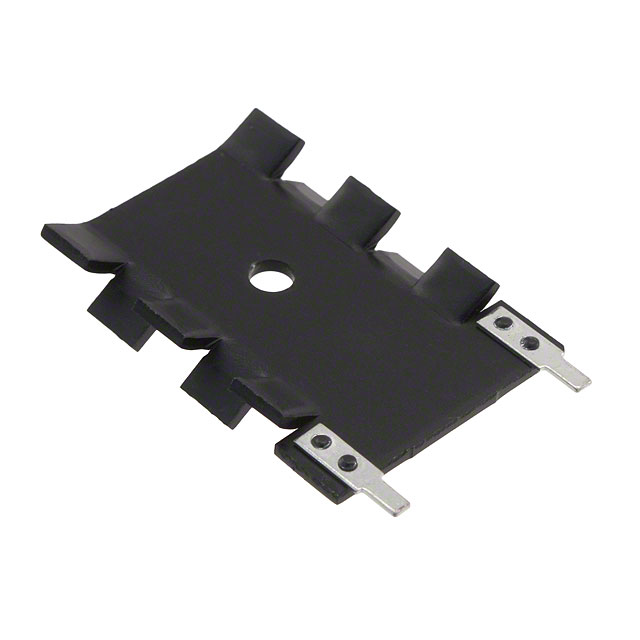

288-1AB
ObsoleteWakefield Thermal Solutions
HEATSINK TO-220/202 VERT W/TABS
288-1AB
ObsoleteWakefield Thermal Solutions
HEATSINK TO-220/202 VERT W/TABS
Description
General part information
288-1AB
HEATSINK TO-220/202 VERT W/TABS
Technical Specifications
Parameters and characteristics for this part
| Specification | 288-1AB |
|---|---|
| Attachment Method | PC Pin, Bolt On |
| Fin Height | 0.215 in |
| Length | 1.25 in |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | TO-220, TO-202 |
| Power Dissipation | 4 W |
| Shape | Fins, Rectangular |
| Thermal Resistance | 12 °C/W, 21.2 °C/W |
| Type | Vertical, Board Level |
| Width | 0.875 in |
