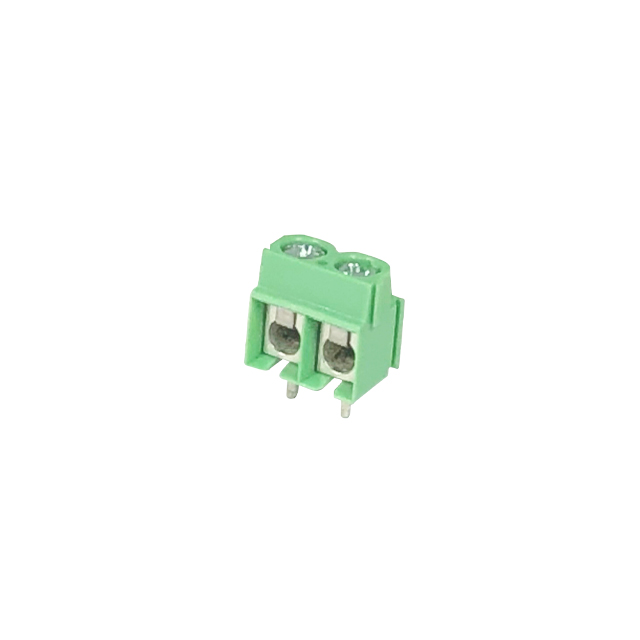

ED500V-02P
ActiveDinkle Corporation, USA
TERM BLK 2POS 5.00MM SCRW PLG
ED500V-02P
ActiveDinkle Corporation, USA
TERM BLK 2POS 5.00MM SCRW PLG
Description
General part information
ED500V-02P
2 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | ED500V-02P |
|---|---|
| Color | Green |
| Current | 16 A |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.197 in |
| Positions Per Level | 2 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
| Wire Termination | Wire Guard, Screw, Leaf Spring |
