4-440054-8
ActiveTE Connectivity AMP Connectors

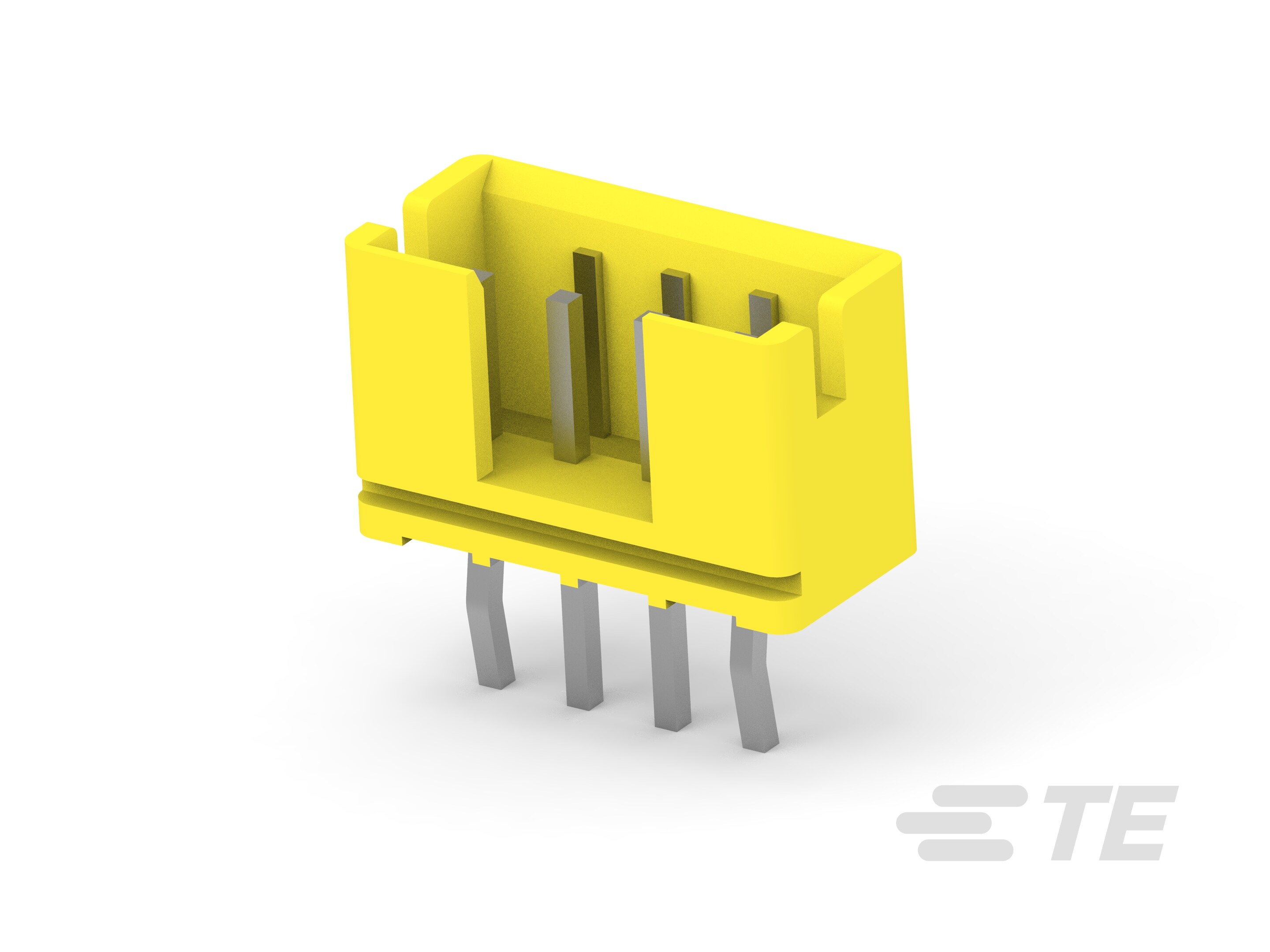

2MM PITCH 4P HPI VERTICAL POST HEADERS
4-440054-8
ActiveTE Connectivity AMP Connectors
2MM PITCH 4P HPI VERTICAL POST HEADERS
Description
General part information
4-440054-8
PCB Mount Header, Vertical, Wire-to-Board, 4 Position, 2 mm [.079 in] Centerline, Partially Shrouded, Through Hole - Solder, Signal, Yellow, Tube
Technical Specifications
Parameters and characteristics for this part
| Specification | 4-440054-8 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 80 µin |
| Contact Length - Mating | 0.132 in |
| Contact Length - Post | 0.134 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Yellow |
| Insulation Height | 0.238 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Overall Contact Length | 0.335 in |
| Pitch - Mating | 0.079 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Kinked Pin, Solder |
| Voltage Rating | 250 V |
| Voltage Rating (Type) | DC |
