LR6 C/BF2
ActiveFDK America, Inc.
BATTERY PACK ALKALINE 3V AA
LR6 C/BF2
ActiveFDK America, Inc.
BATTERY PACK ALKALINE 3V AA
Description
General part information
LR6 C/BF2

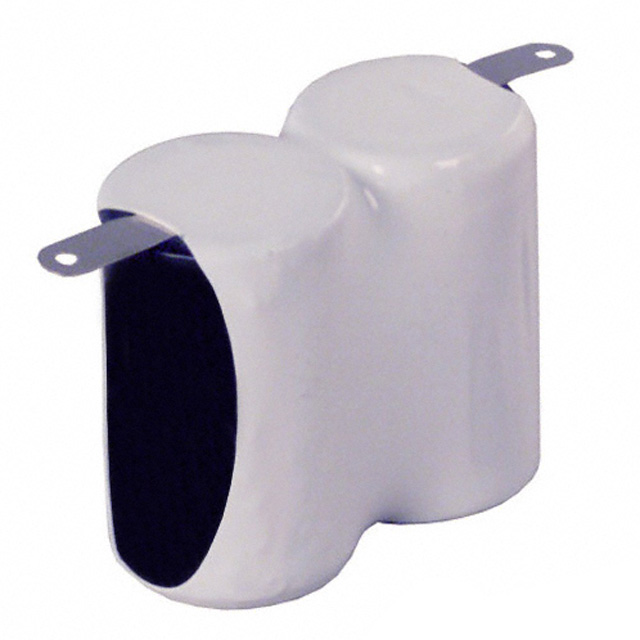

AA 3 V Alkaline Manganese Dioxide Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | LR6 C/BF2 |
|---|---|
| Battery Cell Size | AA |
| Battery Chemistry | Alkaline Manganese Dioxide |
| Capacity (Charge) | 2.7 Ah |
| Number of Cells | 2 |
| Rechargeability | No |
| Size / Dimension Height | 1.99 in |
| Size / Dimension Length | 1.14 in |
| Size / Dimension Width | 0.57 in |
| Structure | Side to Side |
| Structure Cells | 2 |
| Structure Rows | 1 |
| Termination Style | Solder Tab |
| Voltage - Rated | 3 VDC |
| Weight | 46 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
