1648206-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG DRAWER 29POS BLK
1648206-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG DRAWER 29POS BLK
Description
General part information
1648206-1

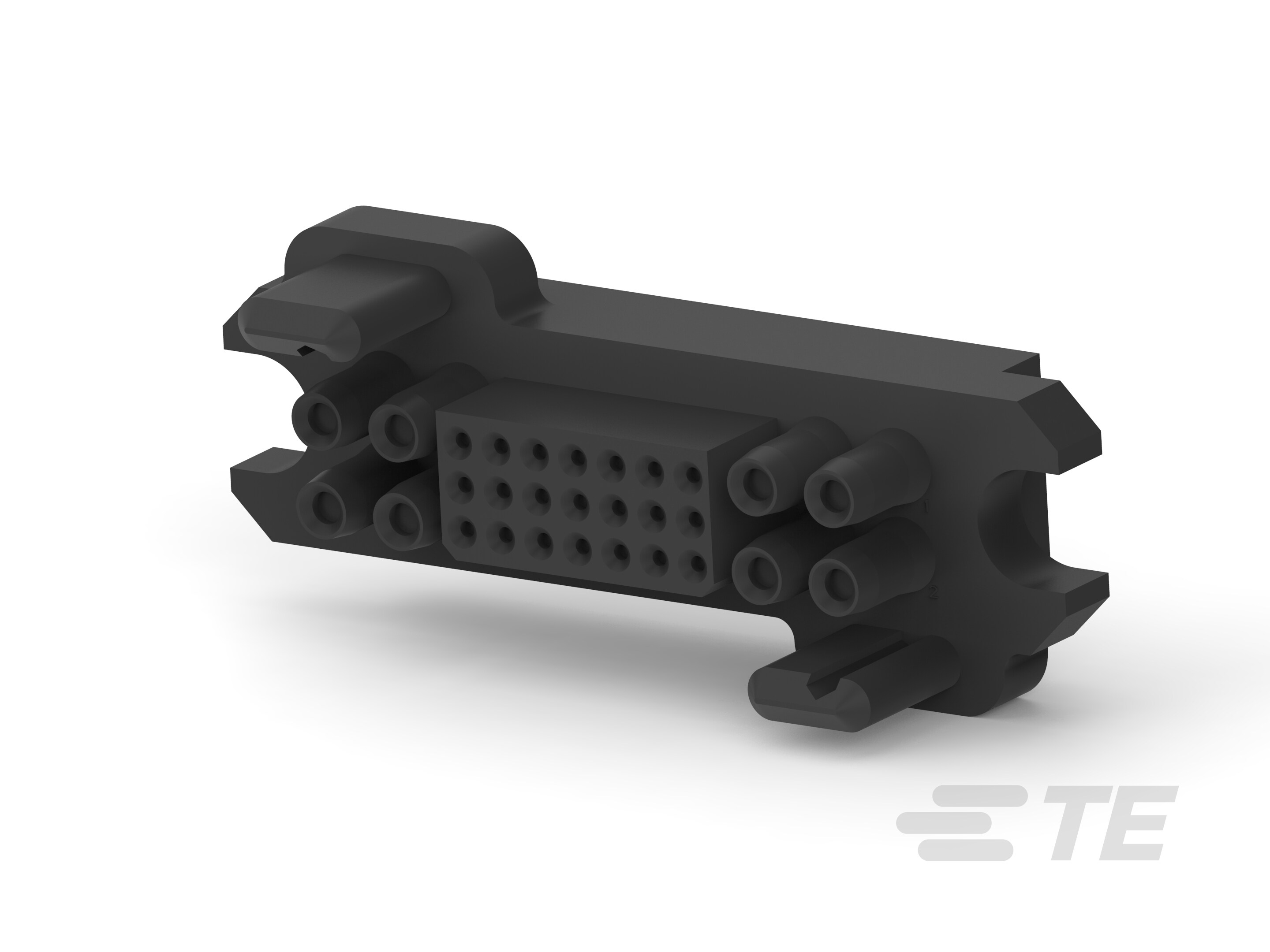

29 Position, Receptacle, Housing, Crimp, Wire-to-Wire, UL 94V-0, 3.81 mm / 7.62 mm [.15 in / .3 in] Centerline, 2 / 3 Row, Wire & Cable
Technical Specifications
Parameters and characteristics for this part
| Specification | 1648206-1 |
|---|---|
| Color | Black |
| Connector Style | Drawer, Lower |
| Connector Type | Housing for Female Sockets |
| Connector Usage | Receptacle |
| Features | Guide Pin |
| Mounting Type | Panel Mount |
| Number of Positions (Normal) | 21 |
| Number of Positions (Power) | 8 |
| Number of Positions (Total) | 29 |
| Number of Rows | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
