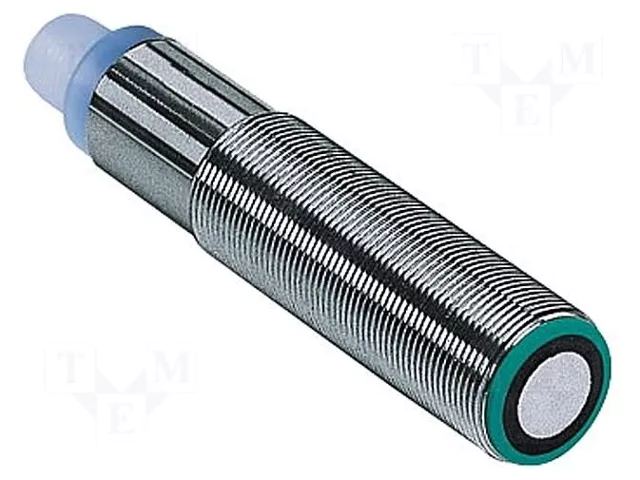

UB1000-18GM75-E6-V15
ActivePepperl+Fuchs, Inc.
SENSOR: ULTRASONIC; STRAIGHT; RANGE: 70÷1000MM; NPN / NO / NC
UB1000-18GM75-E6-V15
ActivePepperl+Fuchs, Inc.
SENSOR: ULTRASONIC; STRAIGHT; RANGE: 70÷1000MM; NPN / NO / NC
Description
General part information
UB1000-18GM75-E6-V15
SENSOR: ULTRASONIC; STRAIGHT; RANGE: 70÷1000MM; NPN / NO / NC
Technical Specifications
Parameters and characteristics for this part
| Specification | UB1000-18GM75-E6-V15 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP |
| Package / Case | Cylinder, Threaded - M18 |
| Sensing Distance Maximum | 39.37 " |
| Sensing Distance Minimum | 2.756 " |
| Sensor Type | Ultrasonic |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
