Description
General part information

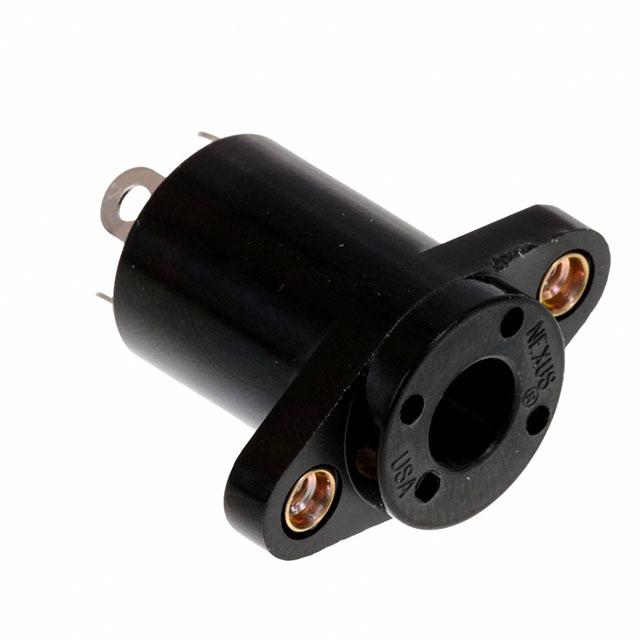

TJ-120
Phone Jack Stereo (4 Conductor, TRRS) Connector Solder Eyelet(s)
Technical Specifications
Parameters and characteristics for this part
| Specification | TJ-120 |
|---|---|
| Actual Diameter | 0.285 in |
| Body Color | Black |
| Connector Type | Phone Jack |
| Contact Material | Beryllium Copper |
| Contact Material - Plating | Nickel |
| Features | Flange, Mounting Hardware |
| Gender | Female |
| Housing Material | Phenolic |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.761 in |
| Mounting Type | Panel Mount, Through Hole |
| Number of Conductors | 4 Conductors |
| Number of Contacts | 4 Contacts |
| Shielding | Unshielded |
| Signal Lines | 4 Conductor, TRRS, Stereo |
| Termination | Solder Eyelet(s) |
