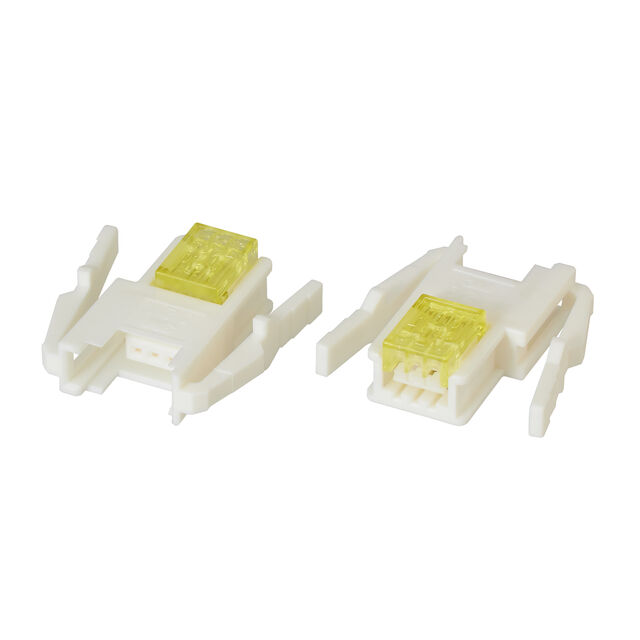

37B03-C206-WP0 MB 500
Active3M Electronic Specialty
IDC CONNECTOR, 24-20 AWG, IDC RECEPTACLE, FEMALE, 2 MM, 1 ROW, 3 CONTACTS, CABLE MOUNT, PANEL MOUNT
37B03-C206-WP0 MB 500
Active3M Electronic Specialty
IDC CONNECTOR, 24-20 AWG, IDC RECEPTACLE, FEMALE, 2 MM, 1 ROW, 3 CONTACTS, CABLE MOUNT, PANEL MOUNT
Description
General part information
37B03-C206-WP0 MB 500
3 Position Rectangular Receptacle Connector IDC Gold 20-24 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 37B03-C206-WP0 MB 500 |
|---|---|
| Cable Termination | IDC |
| Color | White |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Pitch | 0.079 in |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
| Wire Type | Discrete |
