A-USBC-32F1-EG-KST02
ActiveAssmann WSW Components
CONN RCPT USB3.2 TYPEC 24POS SMD
A-USBC-32F1-EG-KST02
ActiveAssmann WSW Components
CONN RCPT USB3.2 TYPEC 24POS SMD
Description
General part information
A-USBC-32F1-EG-KST02

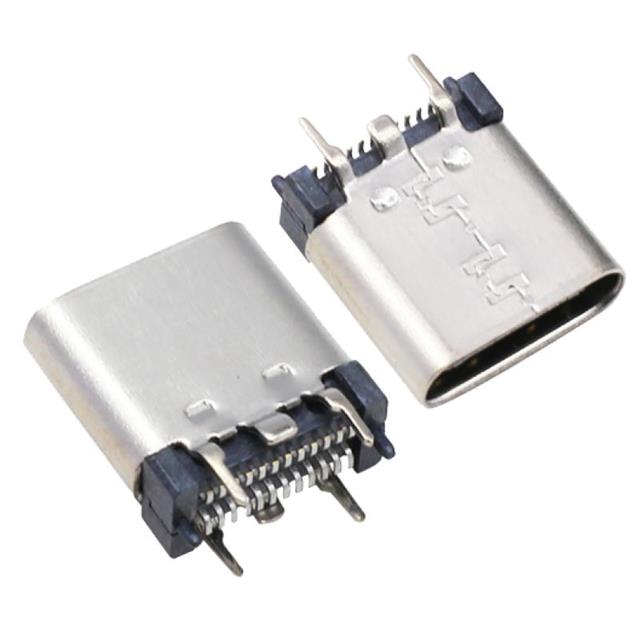

USB-C (USB TYPE-C) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 24 Position Surface Mount, Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | A-USBC-32F1-EG-KST02 |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating | 5 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Mating Cycles | 10000 cycles |
| Mounting Feature | Vertical |
| Mounting Type | Surface Mount, Through Hole |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Shell/Shielding Material | Steel, Stainless |
| Shielding | Shielded |
| Specifications | Superspeed (USB 3.0), USB 3.1 Gen 1, USB 3.2 Gen 1 |
| Termination | Solder |
| Voltage - Rated | 100 VAC/DC |
