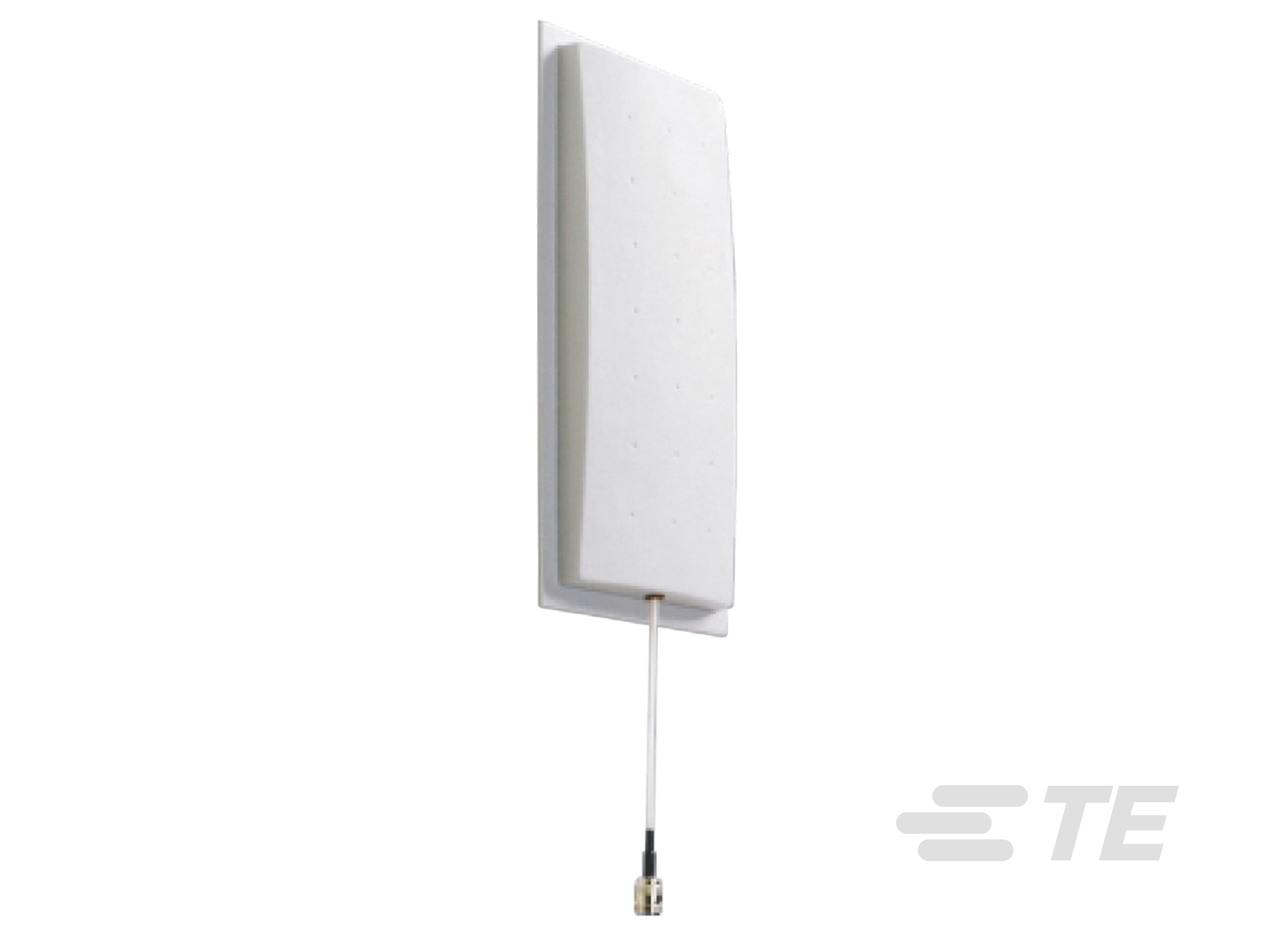

S2401240P12NF
Panel Antenna, Single Band, Wi-Fi, External Mount, Pole/Mast/Bracket Mount, N-type, Directional, Single Port, > 6 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | S2401240P12NF |
|---|---|
| Antenna Type | Panel |
| Applications | WiMax™ WLAN |
| Features | 305mm, Cable |
| Frequency (Center/Band) | 2.4 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.5 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 12 dBi |
| Height (Max) | 31.75 mm |
| Mounting Type | Chassis Mount |
| Number of Bands | 1 |
| Power - Max | 25 W |
| RF Family/Standard | WiFi |
| Termination | N Type Female |
| VSWR | 1.5 |
