M3WWK-2018J

Active

IDC CABLE - MPL20K/MC20G/MPL20K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Ribbon Cable Assembly Length Guide +1

M3WWK-2018J

Active

IDC CABLE - MPL20K/MC20G/MPL20K

Deep-Dive with AI

DocumentsDatasheet Ribbon Cable Assembly Length Guide +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.44
		10	$ 18.84
		25	$ 17.06
		50	$ 15.85
		100	$ 14.76
		250	$ 13.48
		500	$ 12.61

Description

General part information

M3WWK Series

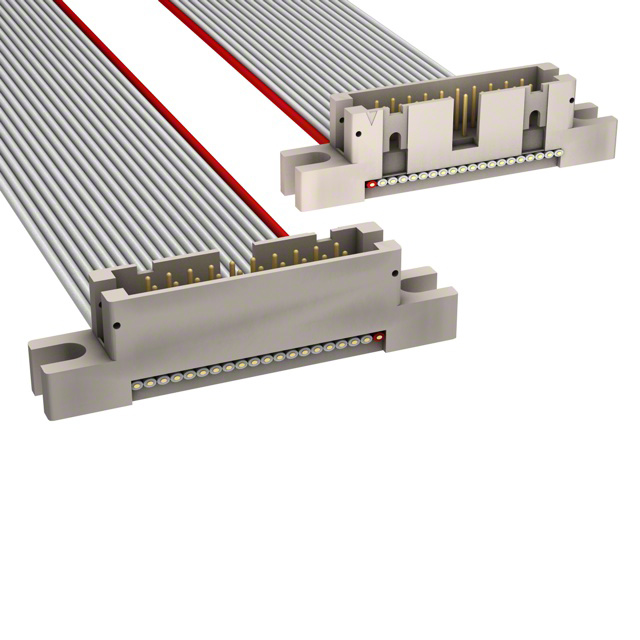

20 Position Cable Assembly Rectangular Plug to Plug 1.50' (457.20mm)

Documents

Technical documentation and resources

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet

3365 Series Datasheet

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3WWK-2018J	M3WWK Series

Cable Termination	IDC	IDC
Color	-	Ribbon, Multiple, Multiple, Twisted Pair (Flat)
Connector Type	Plug to Plug	Plug to Plug
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Flange, Polarizing Key	Flange, Polarizing Key
Length	-	152.4 - 508 mm
Length	-	1.67 ft
Length	-	6 "
Length	-	0.5 '
Length [x]	457.2 mm	1.02 - 914.4 mm
Length [x]	1.5 ft	1.5 - 3.34 ft
Number of Positions	20	10 - 64
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M3WWK Series

IDC CABLE - MPL16K/MC16M/MPL16K

Part	Color	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Features	Contact Finish	Connector Type	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Number of Positions	Shielding	Number of Rows	Number of Positions	Length	Length	Length	Length
3M M3WWK-1618R	Multiple, Ribbon	IDC	0.76 Ám	30 Áin	457.2 mm	1.5 ft	Flange, Polarizing Key	Gold	Plug to Plug	0.05 "	1.27 mm	0.1 in	2.54 mm	16	Unshielded	2
3M M3WWK-6420K	Multiple, Twisted Pair (Flat)	IDC	0.76 Ám	30 Áin			Flange, Polarizing Key	Gold	Plug to Plug	0.05 "	1.27 mm	0.1 in	2.54 mm		Unshielded	2	64	508 mm	1.67 ft
3M M3WWK-4006J		IDC	0.76 Ám	30 Áin			Flange, Polarizing Key	Gold	Plug to Plug	0.05 "	1.27 mm	0.1 in	2.54 mm		Unshielded	2	40	152.4 mm		6 "	0.5 '
3M M3WWK-3618J		IDC	0.76 Ám	30 Áin	457.2 mm	1.5 ft	Flange, Polarizing Key	Gold	Plug to Plug	0.05 "	1.27 mm	0.1 in	2.54 mm		Unshielded	2	36
3M M3WWK-2436R	Multiple, Ribbon	IDC	0.76 Ám	30 Áin	914.4 mm	3 ft	Flange, Polarizing Key	Gold	Plug to Plug	0.05 "	1.27 mm	0.1 in	2.54 mm		Unshielded	2	24
3M M3WWK-2636J		IDC	0.76 Ám	30 Áin	914.4 mm	3 ft	Flange, Polarizing Key	Gold	Plug to Plug	0.05 "	1.27 mm	0.1 in	2.54 mm		Unshielded	2	26
3M M3WWK-1018J		IDC	0.76 Ám	30 Áin	457.2 mm	1.5 ft	Flange, Polarizing Key	Gold	Plug to Plug	0.05 "	1.27 mm	0.1 in	2.54 mm		Unshielded	2	10
3M M3WWK-6036R	Multiple, Ribbon	IDC	0.76 Ám	30 Áin	914.4 mm	3 ft	Flange, Polarizing Key	Gold	Plug to Plug	0.05 "	1.27 mm	0.1 in	2.54 mm		Unshielded	2	60
3M M3WWK-6020K	Multiple, Twisted Pair (Flat)	IDC	0.76 Ám	30 Áin			Flange, Polarizing Key	Gold	Plug to Plug	0.05 "	1.27 mm	0.1 in	2.54 mm		Unshielded	2	60	508 mm	1.67 ft
3M M3WWK-6040K	Multiple, Twisted Pair (Flat)	IDC	0.76 Ám	30 Áin	1.02 m	3.34 ft	Flange, Polarizing Key	Gold	Plug to Plug	0.05 "	1.27 mm	0.1 in	2.54 mm		Unshielded	2	60
