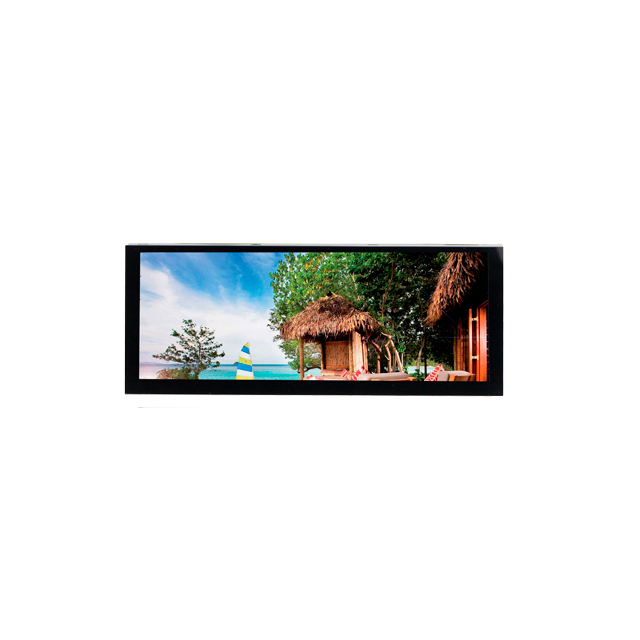

ATM0680L2A-CT

Obsolete

AZ Displays

6.8" IPS LCD 480 X 1280 W/ PCAP

Search across all available documentation for this part.

Obsolete

AZ Displays

6.8" IPS LCD 480 X 1280 W/ PCAP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATM0680L2A-CT	ATM0680 Series

Background Color	White	Black, White
Backlight	LED	LED
Controller Type	-	NV3051F1
Diagonal Screen Size	172.72 mm	172.72 - 174.24 mm
Diagonal Screen Size	6.8 in	6.8 - 6.9 in
Display Mode	Transmissive	Transmissive
Display Type	TFT - Color, IPS (In-Plane Switching)	TFT - Color, IPS (In-Plane Switching)
Dot Pitch [y]	0.04 mm	0.04 mm
Dot Pitch [z]	0.13 mm	0.13 mm
Dot Pixels [x]	480	480
Dot Pixels [y]	1280	1280
Dot Size [x]	0.13 mm	0.13 mm
Dot Size [y]	0.13 mm	0.13 mm
Graphics Color	Green, Red, Blue	Green, Red, Blue
Interface	MIPI	LVDS, MIPI
Touchscreen	Capacitive	Capacitive
Viewing Area	-	60.19 mm
Viewing Area [x]	60.22 mm	60.22 - 162.49 mm
Viewing Area [y]	160.59 mm	61.92 - 160.59 mm

6.8" MIPI 480X1280 400 NITS IPS

Part	Graphics Color	Controller Type	Dot Pixels [x]	Dot Pixels [y]	Viewing Area [x]	Viewing Area [y]	Display Mode	Backlight	Display Type	Interface	Touchscreen	Dot Pitch [y]	Dot Pitch [z]	Background Color	Diagonal Screen Size	Diagonal Screen Size	Viewing Area [z]	Dot Size [x]	Dot Size [y]
AZ Displays ATM0680L3B-CT	Blue, Green, Red	NV3051F1	480	1280	162.49 mm	61.92 mm	Transmissive	LED	TFT - Color, IPS (In-Plane Switching)	LVDS	Capacitive	0.04 mm	0.13 mm	Black	174.24 mm	6.9 in
AZ Displays ATM0680L3B	Blue, Green, Red	NV3051F1	480	1280		160.51 mm	Transmissive	LED	TFT - Color, IPS (In-Plane Switching)	LVDS		0.04 mm	0.13 mm	Black	174.24 mm	6.9 in	60.19 mm
AZ Displays ATM0680L2A-CT	Blue, Green, Red		480	1280	60.22 mm	160.59 mm	Transmissive	LED	TFT - Color, IPS (In-Plane Switching)	MIPI	Capacitive	0.04 mm	0.13 mm	White	172.72 mm	6.8 in		0.13 mm	0.13 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) MIPI 6.8" (172.72mm) 480 x 1280
