UWS-5/10-Q48NM-C
ActiveMurata Power Solutions Inc.

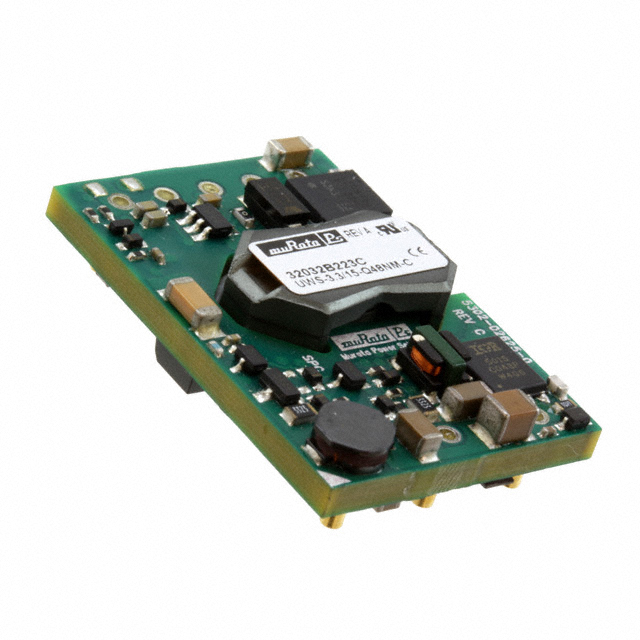

ISOLATED SURFACE MOUNT DC/DC CONVERTER, SIXTEENTH BRICK, DOSA, 4:1, 50 W, 1 OUTPUT, 5 V
Deep-Dive with AI
Search across all available documentation for this part.
UWS-5/10-Q48NM-C
ActiveMurata Power Solutions Inc.
ISOLATED SURFACE MOUNT DC/DC CONVERTER, SIXTEENTH BRICK, DOSA, 4:1, 50 W, 1 OUTPUT, 5 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UWS-5/10-Q48NM-C | UWS-5 Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Control Features | - | Active Low, Enable, Active High |
| Current - Output (Max) | - | 10 A |
| Efficiency | - | 91 % |
| Features | - | Remote On/Off, UVLO |
| Mounting Type | - | Through Hole, Surface Mount |
| null | - | |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 8-DIP Module, 1/16 Brick, 1/16 Brick, 8-SMD Module |
| Power (Watts) | - | 50 W |
| Size / Dimension | - | 0.91 in |
| Size / Dimension | - | 23.1 mm |
| Size / Dimension | - | 0.36 in |
| Size / Dimension | - | 9.1 mm |
| Size / Dimension | - | 1.31 in |
| Size / Dimension | - | 33.3 mm |
| Type | - | Isolated Module |
| Voltage - Input (Max) | - | 75 V |
| Voltage - Input (Min) | - | 18 V |
| Voltage - Isolation | - | 2250 VDC |
| Voltage - Output 1 | - | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
UWS-5 Series
ISOLATED SURFACE MOUNT DC/DC CONVERTER, SIXTEENTH BRICK, DOSA, 4:1, 50 W, 1 OUTPUT, 5 V
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Voltage - Isolation | Voltage - Output 1 | Current - Output (Max) [Max] | Mounting Type | Applications | Voltage - Input (Min) [Min] | Package / Case | Efficiency | Type | Power (Watts) | Number of Outputs | Control Features | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. UWS-5/10-Q48NM-C | ||||||||||||||||||||||
Murata Power Solutions Inc. UWS-5/10-Q48N-C | 85 °C | -40 °C | 75 V | 2250 VDC | 5 V | 10 A | Through Hole | ITE (Commercial) | 18 V | 8-DIP Module, 1/16 Brick | 91 % | Isolated Module | 50 W | 1 | Active Low, Enable | 0.91 in | 23.1 mm | 0.36 in | 9.1 mm | 1.31 in | 33.3 mm | Remote On/Off, UVLO |
Murata Power Solutions Inc. UWS-5/10-Q48NH-C | 85 °C | -40 °C | 75 V | 2250 VDC | 5 V | 10 A | Through Hole | ITE (Commercial) | 18 V | 8-DIP Module, 1/16 Brick | 91 % | Isolated Module | 50 W | 1 | Active Low, Enable | 0.91 in | 23.1 mm | 0.36 in | 9.1 mm | 1.31 in | 33.3 mm | Remote On/Off, UVLO |
Murata Power Solutions Inc. UWS-5/10-Q48P-C | ||||||||||||||||||||||
Murata Power Solutions Inc. UWS-5/10-Q48P-C | 85 °C | -40 °C | 75 V | 2250 VDC | 5 V | 10 A | Through Hole | ITE (Commercial) | 18 V | 8-DIP Module, 1/16 Brick | 91 % | Isolated Module | 50 W | 1 | Active High, Enable | 0.91 in | 23.1 mm | 0.36 in | 9.1 mm | 1.31 in | 33.3 mm | Remote On/Off, UVLO |
Murata Power Solutions Inc. UWS-5/10-Q48NM-C | 85 °C | -40 °C | 75 V | 2250 VDC | 5 V | 10 A | Surface Mount | ITE (Commercial) | 18 V | 1/16 Brick, 8-SMD Module | 91 % | Isolated Module | 50 W | 1 | Active Low, Enable | 0.91 in | 23.1 mm | 0.36 in | 9.1 mm | 1.31 in | 33.3 mm | Remote On/Off, UVLO |
Murata Power Solutions Inc. UWS-5/10-Q48PH-C | 85 °C | -40 °C | 75 V | 2250 VDC | 5 V | 10 A | Through Hole | ITE (Commercial) | 18 V | 8-DIP Module, 1/16 Brick | 91 % | Isolated Module | 50 W | 1 | Active High, Enable | 0.91 in | 23.1 mm | 0.36 in | 9.1 mm | 1.31 in | 33.3 mm | Remote On/Off, UVLO |
Murata Power Solutions Inc. UWS-5/10-Q48N-C |
Description
General part information
UWS-5 Series
Isolated Module DC DC Converter 1 Output 5V 10A 18V - 75V Input
