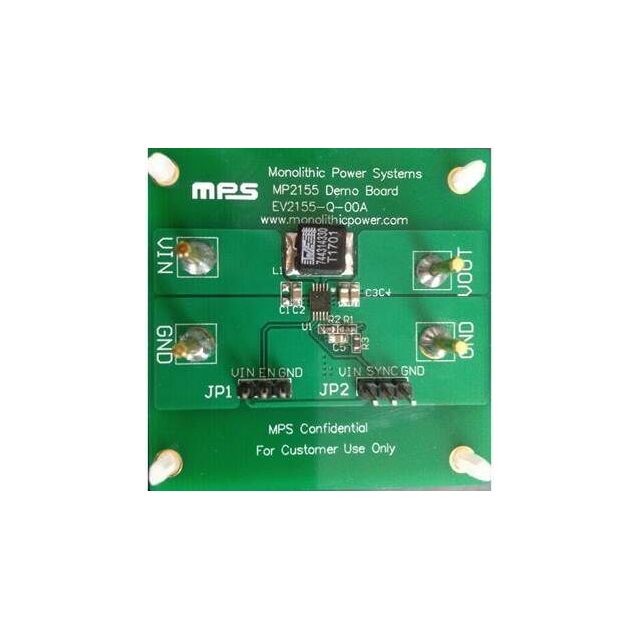

EV2155-Q-00A
ActiveMonolithic Power Systems Inc.
EVAL BOARD FOR MP2155
EV2155-Q-00A
ActiveMonolithic Power Systems Inc.
EVAL BOARD FOR MP2155
Description
General part information
EV2155-Q-00A
EVAL BOARD FOR MP2155
Technical Specifications
Parameters and characteristics for this part
| Specification | EV2155-Q-00A |
|---|---|
| Contents | Board |
| Frequency - Switching | 1 MHz |
| Main Purpose | Step Up or Down, DC/DC |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Regulator Topology | Buck-Boost |
| Total Output Count | 1 |
| Utilized IC / Part | MP2155 |
| Voltage - Input (Maximum) | 5.5 V |
| Voltage - Input (Minimum) | 2 V |
| Voltage - Output | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
