796638-4
ActiveTE Connectivity AMP Connectors

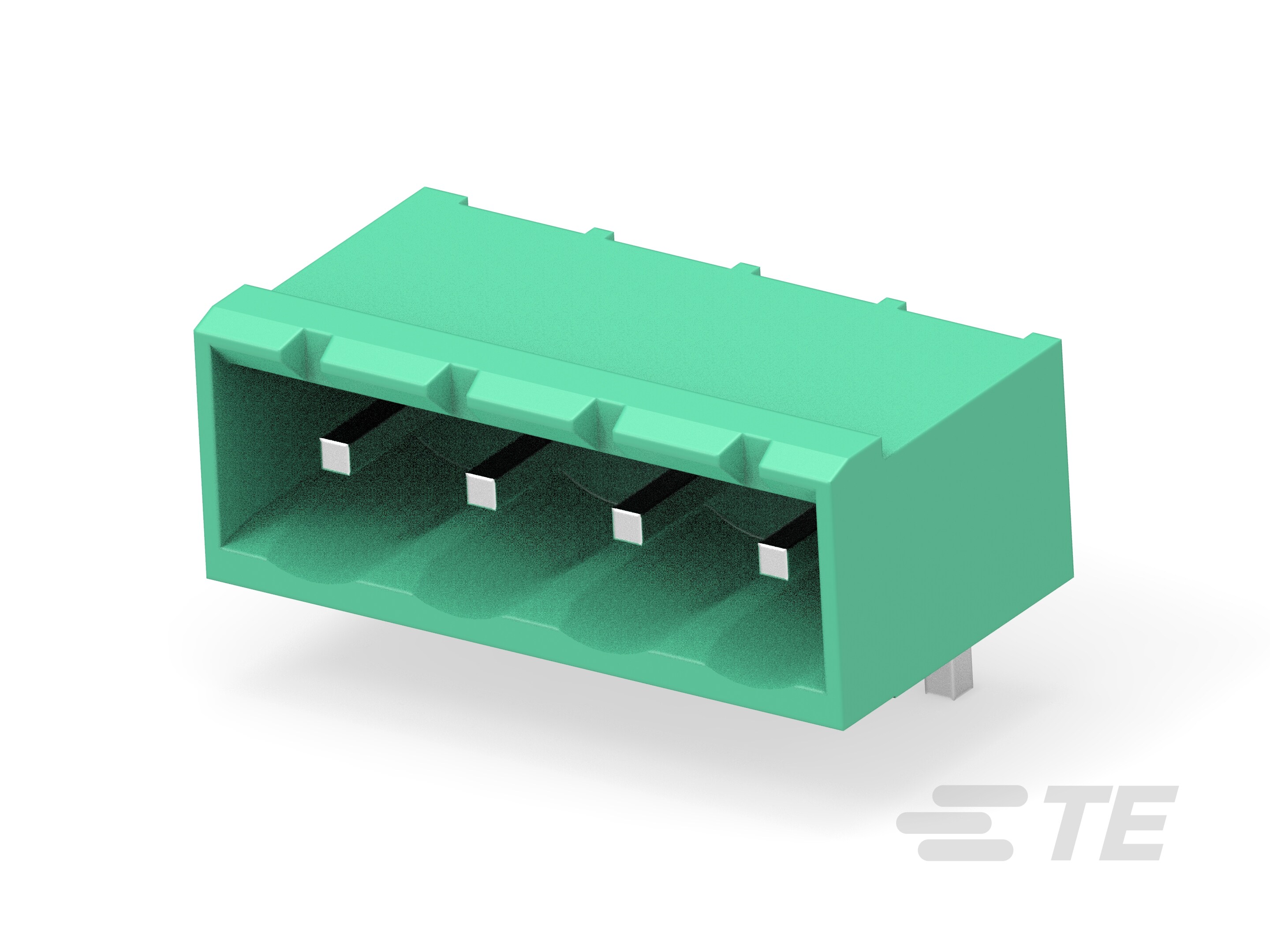

4POS 5.08MM CE R/A HDR,TRM BLK
796638-4
ActiveTE Connectivity AMP Connectors
4POS 5.08MM CE R/A HDR,TRM BLK
Description
General part information
796638-4
4 Position PCB Terminal Block, Header, Wire-to-Board, 5.08 mm [.2 in] Centerline, 1 Row, 30 – 12 AWG, .05 – 3 mm² Wire, 300 VAC, Printed Circuit Board
Technical Specifications
Parameters and characteristics for this part
| Specification | 796638-4 |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - UL | 15 A |
| Header Orientation | Right Angle |
| Header Orientation Angle | 90 ° |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 5.08 mm |
| Positions Per Level | 4 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - UL | 300 V |
