VPX6W6F9300A1/AA
ActiveMcGill Microwave Systems
FEMALE CONNECTOR WITH COMPLIANT
VPX6W6F9300A1/AA
ActiveMcGill Microwave Systems
FEMALE CONNECTOR WITH COMPLIANT
Description
General part information
VPX6W6F9300A1/AA

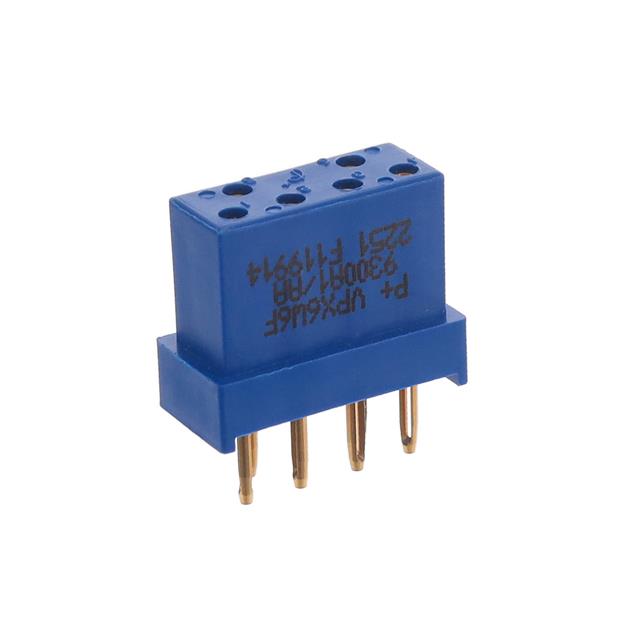

6 Connector Receptacle, Female Sockets Through Hole Blue
Technical Specifications
Parameters and characteristics for this part
| Specification | VPX6W6F9300A1/AA |
|---|---|
| Color | Blue |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.087 in |
| Power Contacts (Typical) | 6 |
| Termination | Press-Fit |
| Voltage Rating | 200 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
