RSL-7500-50
ObsoleteBourns Inc.
RES CHAS MNT 6.7 UOHM 0.25%
RSL-7500-50
ObsoleteBourns Inc.
RES CHAS MNT 6.7 UOHM 0.25%
Description
General part information
RSL-7500-50

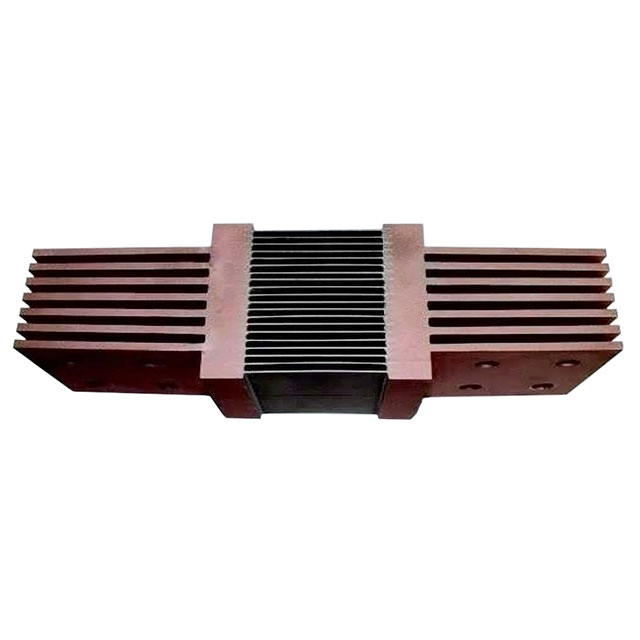

6.7 µOhms ±0.25% Metal Element Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | RSL-7500-50 |
|---|---|
| Composition | Metal Element |
| Features | Safety, Pulse Withstanding, Current Sense, Non-Inductive, Flame Proof |
| Height - Seated (Max) | 4.03 in |
| Lead Style | 4-Terminal |
| Mounting Feature | Flanges |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 30 °C |
| Package / Case | Rectangular Case - Open |
| Resistance | 6.7 µOhms |
| Size / Dimension Length | 12.625 in |
| Size / Dimension Width | 5 in |
| Temperature Coefficient | 15 ppm/°C |
| Tolerance | 0.25 % |
