TWDE253M010SB0Z0700
ActiveKYOCERA AVX

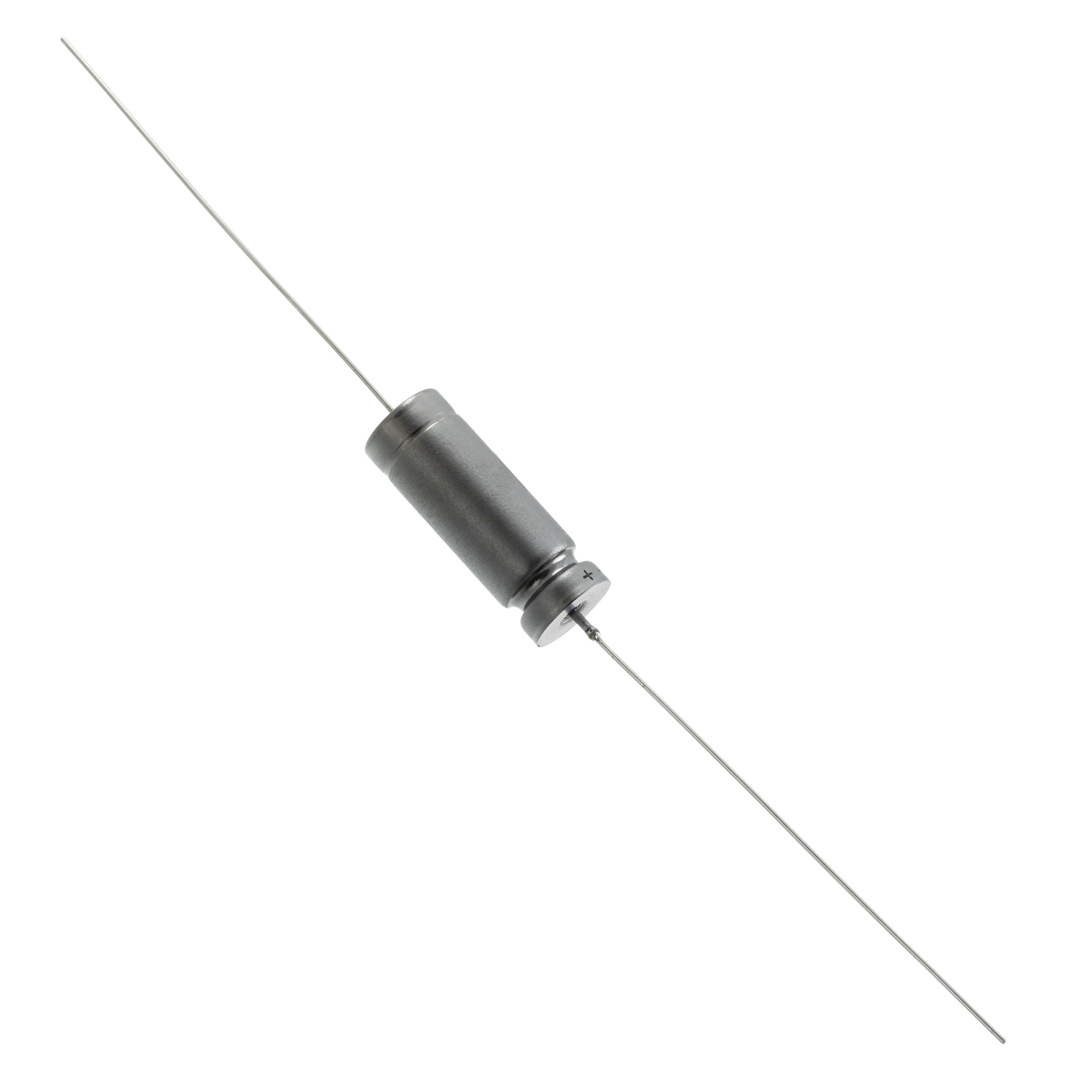

CAP TANT 25000UF 20% 10V AXIAL
TWDE253M010SB0Z0700
ActiveKYOCERA AVX
CAP TANT 25000UF 20% 10V AXIAL
Description
General part information
TWDE253M010SB0Z0700
25000 µF Hermetically Sealed Tantalum Capacitors 10 V Axial 400mOhm @ 1kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | TWDE253M010SB0Z0700 |
|---|---|
| Capacitance | 25000 µF |
| ESR (Equivalent Series Resistance) | 400 mOhm |
| Features | Wet Tantalum |
| Lifetime | 10000 Hrs |
| Manufacturer Size Code | E |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Size / Dimension Diameter | 0.406 in |
| Size / Dimension Length | 1.062 in |
| Tolerance | 20 % |
| Type | Hermetically Sealed |
| Voltage - Rated | 10 V |
