2-1318114-6

Active

TE Connectivity AMP Connectors

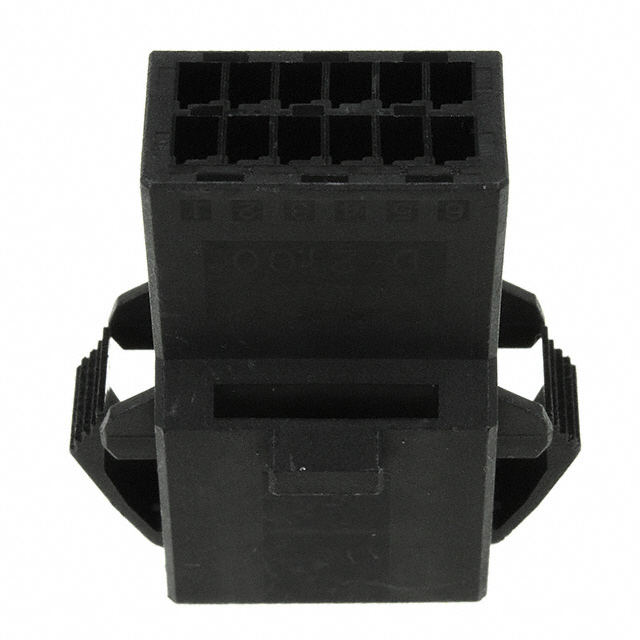

CONN PLUG HSG 12POS 2.50MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 12POS 2.50MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-1318114-6	1318114 Series

Color	Black	Black
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Male Pin	Male Pin
Features	Polarizing Key	Polarizing Key
Insulation Material	Thermoplastic, Glass Filled, Polyester	Thermoplastic, Glass Filled, Polyester
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Note	Contacts Not Included	Contacts Not Included
Number of Positions	12	8 - 20
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	0.098 in	0.098 in
Pitch [x]	2.5 mm	2.5 mm

CONN PLUG HSG 8POS 2.50MM

Part	Contact Type	Mounting Type	Note	Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Termination	Number of Rows	Insulation Material	Connector Type	Pitch [x]	Pitch [x]	Features
TE Connectivity AMP Connectors 1-1318114-4	Male Pin	Panel Mount, Snap-In	Contacts Not Included	Black	105 ░C	-55 °C	8	Crimp	2	Glass Filled, Polyester, Thermoplastic	Plug	0.098 in	2.5 mm	Polarizing Key
TE Connectivity AMP Connectors 2-1318114-9	Male Pin	Panel Mount, Snap-In	Contacts Not Included	Black	105 ░C	-55 °C	20	Crimp	2	Glass Filled, Polyester, Thermoplastic	Plug	0.098 in	2.5 mm	Polarizing Key
TE Connectivity AMP Connectors 1-1318114-6	Male Pin	Panel Mount, Snap-In	Contacts Not Included	Black	105 ░C	-55 °C	12	Crimp	2	Glass Filled, Polyester, Thermoplastic	Plug	0.098 in	2.5 mm	Polarizing Key
TE Connectivity AMP Connectors 2-1318114-4	Male Pin	Panel Mount, Snap-In	Contacts Not Included	Black	105 ░C	-55 °C	8	Crimp	2	Glass Filled, Polyester, Thermoplastic	Plug	0.098 in	2.5 mm	Polarizing Key
TE Connectivity AMP Connectors 2-1318114-6	Male Pin	Panel Mount, Snap-In	Contacts Not Included	Black	105 ░C	-55 °C	12	Crimp	2	Glass Filled, Polyester, Thermoplastic	Plug	0.098 in	2.5 mm	Polarizing Key

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Rectangular Connectors - Housings Plug Black 0.098" (2.50mm)
