YS4303
ActiveTE Connectivity AMP Connectors

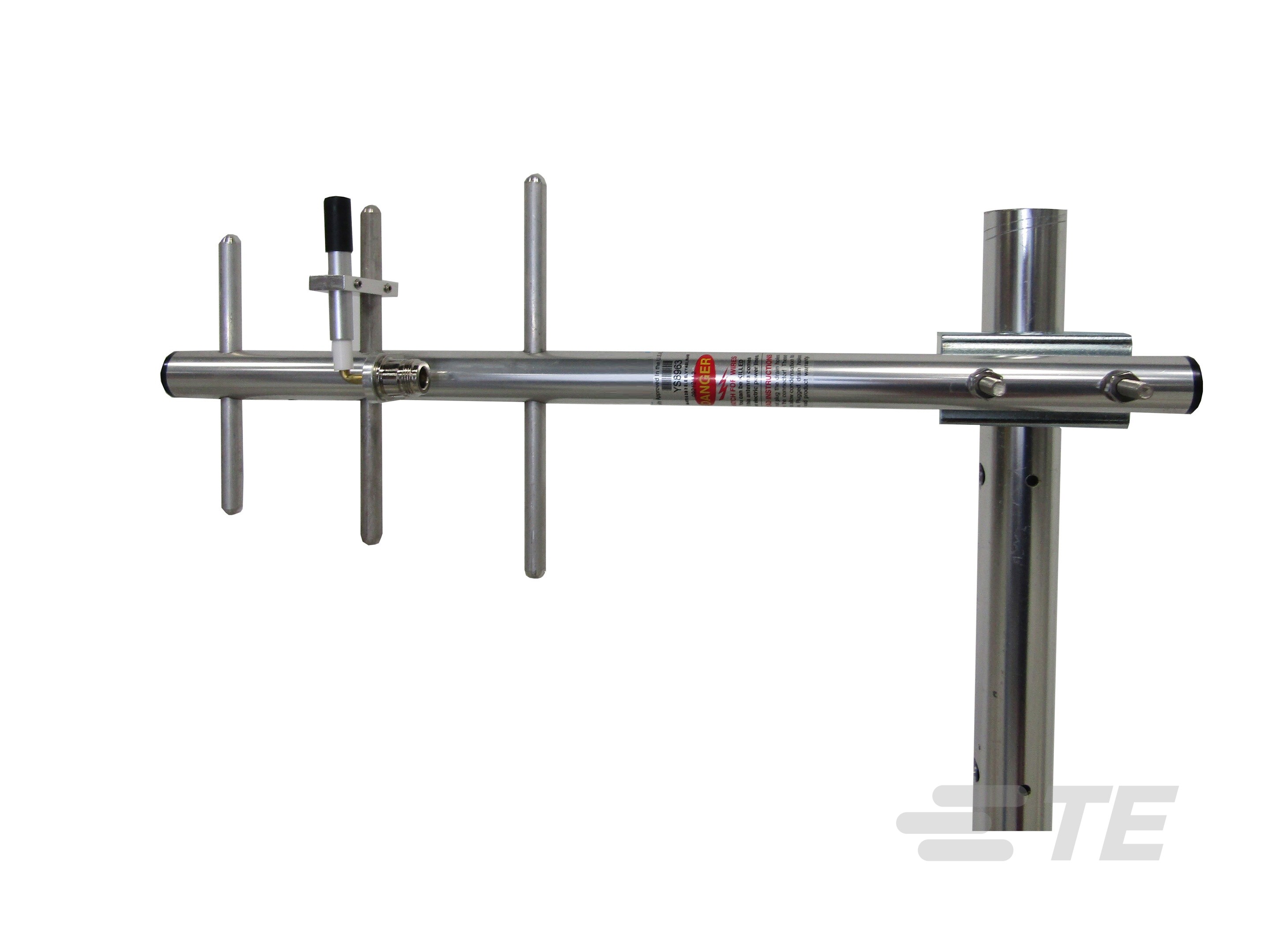

RF ANT 440MHZ YAGI N FEM BRKT MT
YS4303
ActiveTE Connectivity AMP Connectors
RF ANT 440MHZ YAGI N FEM BRKT MT
Description
General part information
YS4303
Yagi Antenna, Single Band, ISM / UHF, External Mount, Pole/Mast/Bracket Mount, N-type, Directional, Single Port, > 6 dBi Peak Gain, YS Series
Technical Specifications
Parameters and characteristics for this part
| Specification | YS4303 |
|---|---|
| Antenna Element Count | 3 elements |
| Antenna Type | Yagi |
| Frequency (Center/Band) | 440 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 450 MHz |
| Frequency Range (Min) | 430 MHz |
| Gain | 7.1 dBd |
| Height (Max) | 20.157 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Termination | N Type Female |
| VSWR | 1.5 |
