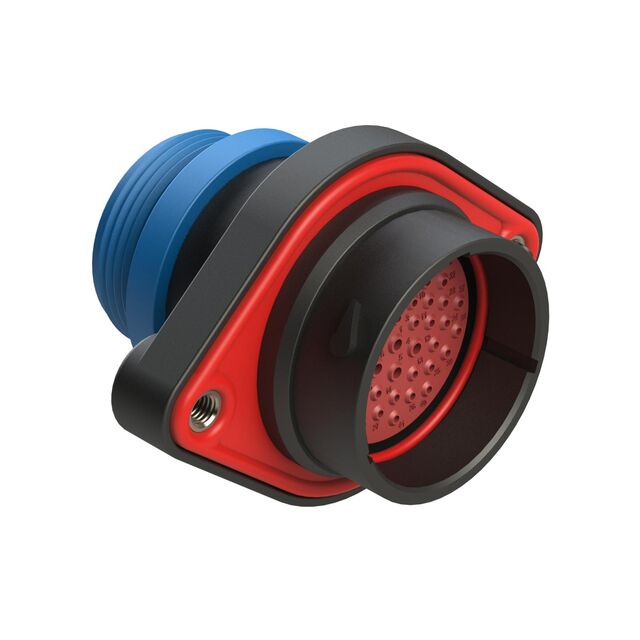

Specification	AHDP02-24-47PR-STA

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20, 16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP69K, IP68
Insert Material	Thermoplastic
Mounting Feature	Flange
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	47
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Thermoplastic
Shell Size - Insert (Maximum)	47
Shell Size - Insert (Minimum)	24
Shielding	Unshielded
Type	For Male Pins

AHDP02 Series

...

Part	Ingress Protection Description	Ingress Protection IP Rating	Contact Size	Note	Contact Type	Connector Type	Shielding	Primary Material	Orientation	Housing Color	Mounting Type	Shell Material	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Mounting Feature	Type	Shell Size - Insert Length	Shell Size - Insert Width	Contact Shape	Insert Material	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Features
McGill Microwave Systems AHDP02-24-21PN-STA	Dust Tight Water Resistant Waterproof	IP68 IP69K	12 16	Contacts Not Included	Crimp	Receptacle Housing	Unshielded	Plastic	Keyed	Black	Panel Mount	Thermoplastic	21	125 °C	-55 °C	Bayonet Lock	Flange	For Male Pins	24 mm	21 mm	Circular	Thermoplastic
McGill Microwave Systems AHDP02-24-23PT-BRA	Dust Tight Water Resistant Waterproof	IP68 IP69K	16 S	Contacts Not Included	Crimp	Receptacle Housing	Unshielded	Plastic	Keyed	Black	Panel Mount	Thermoplastic	23	125 °C	-55 °C	Bayonet Lock	Flange	For Male Pins	24 mm	23 mm	Circular	Thermoplastic
McGill Microwave Systems AHDP02-24-14PR-STA	Dust Tight Water Resistant Waterproof	IP68 IP69K	4 12 16	Contacts Not Included	Crimp	Receptacle Housing	Unshielded	Plastic	Keyed	Black	Panel Mount	Thermoplastic	14	125 °C	-55 °C	Bayonet Lock	Flange	For Male Pins	24 mm	14 mm	Circular	Thermoplastic
McGill Microwave Systems AHDP02-24-29SR-STA	Dust Tight Water Resistant Waterproof	IP68 IP69K	12 16 20	Contacts Not Included	Crimp	Receptacle Housing	Unshielded	Plastic	Keyed	Black	Panel Mount	Thermoplastic	29	125 °C	-55 °C	Bayonet Lock	Flange	For Female Sockets			Circular	Thermoplastic	29	24
McGill Microwave Systems AHDP02-24-27PR-STA	Dust Tight Water Resistant Waterproof	IP68 IP69K	12 16	Contacts Not Included	Crimp	Receptacle Housing	Unshielded	Plastic	Keyed	Black	Panel Mount	Thermoplastic	27	125 °C	-55 °C	Bayonet Lock	Flange	For Male Pins			Circular	Thermoplastic	27	24
McGill Microwave Systems AHDP02-24-47PR-BRA	Dust Tight Water Resistant Waterproof	IP67 IP69K	16 20	Contacts Not Included	Crimp	Receptacle Housing	Unshielded	Plastic	Keyed	Black	Panel Mount	Thermoplastic	47	125 °C	-55 °C	Bayonet Lock	Flange	For Male Pins			Circular	Thermoplastic	47	24	Backshell
McGill Microwave Systems AHDP02-24-21PR-BRA	Dust Tight Water Resistant Waterproof	IP67 IP69K	12 16	Contacts Not Included	Crimp	Receptacle Housing	Unshielded	Plastic	Keyed	Black	Panel Mount	Thermoplastic	21	125 °C	-55 °C	Bayonet Lock	Flange	For Male Pins	24 mm	21 mm	Circular	Thermoplastic			Backshell
McGill Microwave Systems AHDP02-24-21SR-STA	Dust Tight Water Resistant Waterproof	IP68 IP69K	12 16	Contacts Not Included	Crimp	Receptacle Housing	Unshielded	Plastic	Keyed	Black	Panel Mount	Thermoplastic	21	125 C	-55 C	Bayonet Lock	Flange	For Female Sockets	24 mm	21 mm	Circular	Thermoplastic
McGill Microwave Systems AHDP02-24-09PR-WTA	Dust Tight Water Resistant Waterproof	IP67 IP69K	4 8 12	Contacts Not Included	Crimp	Receptacle Housing	Unshielded	Plastic	Keyed	Black	Panel Mount	Thermoplastic	9	125 °C	-55 °C	Bayonet Lock	Flange	For Male Pins	24 mm	9 mm	Circular	Thermoplastic
McGill Microwave Systems AHDP02-24-19SN-STA	Dust Tight Water Resistant Waterproof	IP68 IP69K	12 16	Contacts Not Included	Crimp	Receptacle Housing	Unshielded	Plastic	Keyed	Black	Panel Mount	Thermoplastic	19	125 °C	-55 °C	Bayonet Lock	Flange	For Female Sockets	24 mm	19 mm	Circular	Thermoplastic
