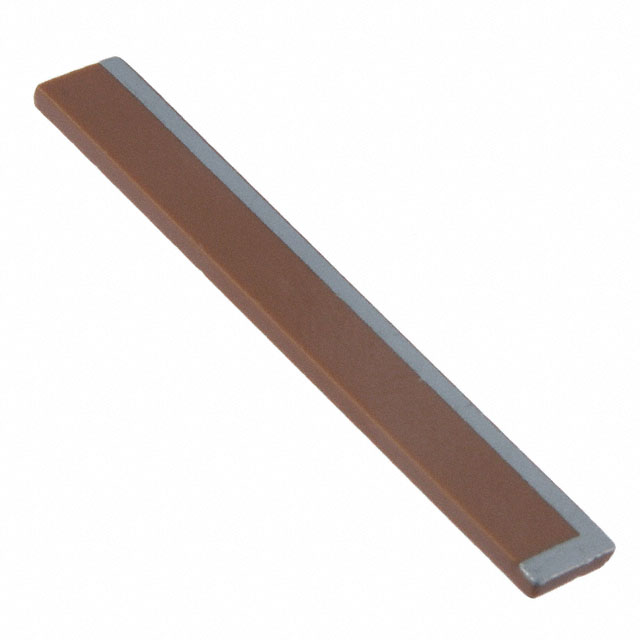

VJ5301M433MXBSR
ObsoleteVishay Dale
RF ANT 433MHZ CHIP SOLDER SMD
VJ5301M433MXBSR
ObsoleteVishay Dale
RF ANT 433MHZ CHIP SOLDER SMD
Description
General part information
VJ5301M433MXBSR
RF ANTENNA Chip Solder Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | VJ5301M433MXBSR |
|---|---|
| Antenna Type | Chip |
| Frequency (Center/Band) | 433 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 510 MHz |
| Frequency Range (Min) | 370 MHz |
| Gain | -5.7 dBi |
| Height (Max) | 0.047 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Return Loss | -3 dB |
| Termination | Solder |
