0ZCD0200FF2C
ObsoleteBel Fuse Inc.
PTC RESET FUSE 16V 2A 2920
0ZCD0200FF2C
ObsoleteBel Fuse Inc.
PTC RESET FUSE 16V 2A 2920
Description
General part information
0ZCD0200FF2C

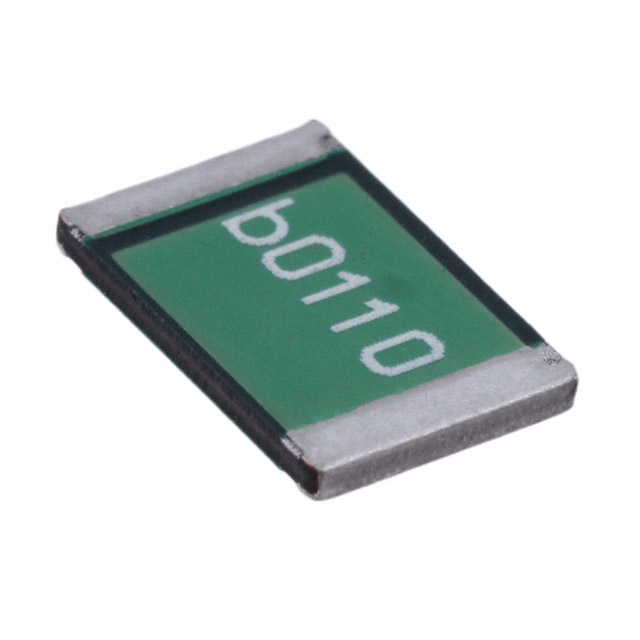

Polymeric PTC Resettable Fuse 16V 2 A Ih Surface Mount 2920 (7351 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 0ZCD0200FF2C |
|---|---|
| Approval Agency | cURus, TUV |
| Current - Hold (Ih) (Max) | 2 A |
| Current - Max | 40 A |
| Current - Trip (It) | 4 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 2920 (7351 Metric) |
| Resistance - Initial (Ri) (Min) | 35 mOhms |
| Resistance - Post Trip (R1) (Max) | 120 mOhms |
| Size / Dimension Length | 0.29 in |
| Size / Dimension Width | 0.202 in |
| Thickness (Max) | 0.035 in |
| Time to Trip | 4.5 s |
| Type | Polymeric |
| Voltage - Max | 16 V |
