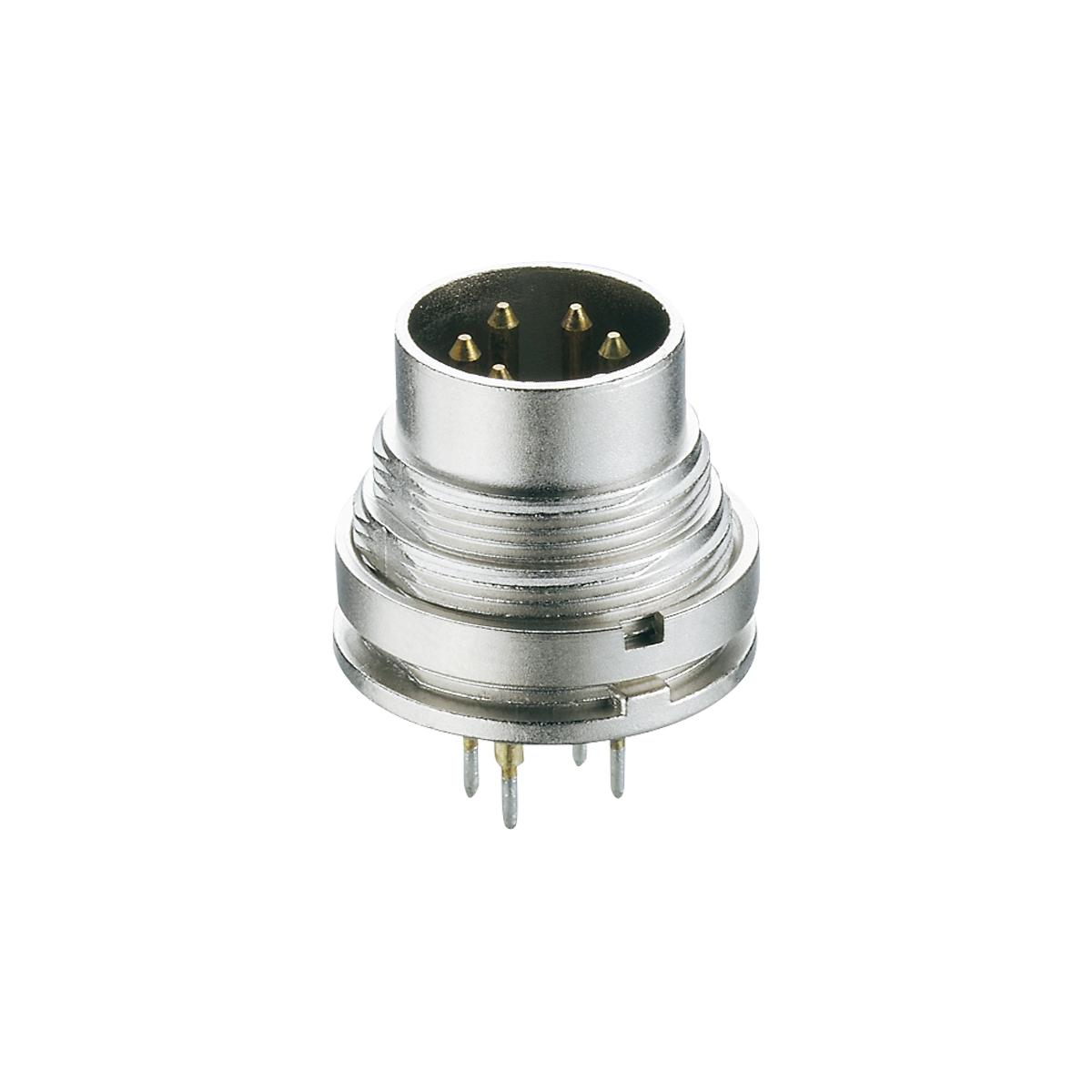

SGR 40
ActiveLumberg Inc
CIRCULAR CONNECTOR, SGR SERIES, PANEL MOUNT RECEPTACLE, 4 CONTACTS, PCB PIN, THREADED, ZINC BODY
SGR 40
ActiveLumberg Inc
CIRCULAR CONNECTOR, SGR SERIES, PANEL MOUNT RECEPTACLE, 4 CONTACTS, PCB PIN, THREADED, ZINC BODY
Description
General part information
SGR 40
4 Position Circular Connector Plug, Male Pins Circuit Board, Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | SGR 40 |
|---|---|
| Color | Silver |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Silver, Gold |
| Fastening Type | Threaded |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Chassis Mount, Panel Mount |
| Number of Positions | 4 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M16 |
| Termination | Solder, Circuit Board |
