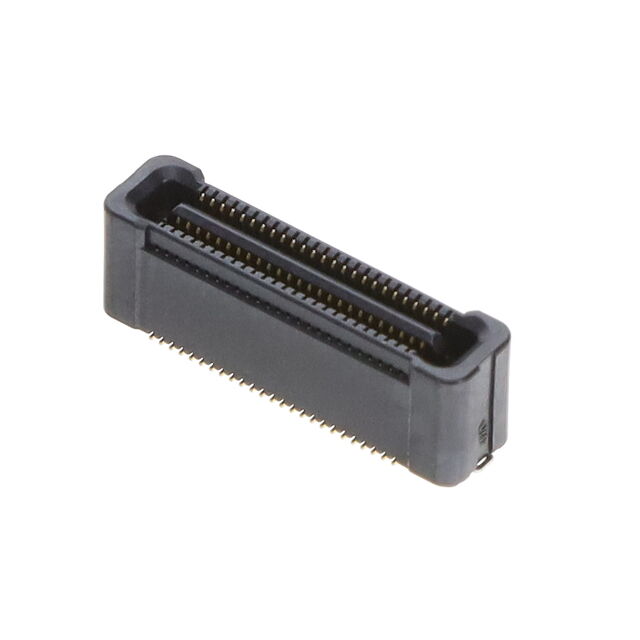

Specification	245655050700829+T

Connector Type	Floating, Receptacle
Contact Finish	Gold
Features	Board Guide, Solder Retention
Height Above Board	0.226 in
Mated Stacking Height	7 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch	0.02 in

245655 Series

Part	Mated Stacking Height	Number of Positions	Pitch	Connector Type	Number of Rows	Mounting Type	Height Above Board	Contact Finish	Features
KYOCERA AVX 245655030600829+T	6 mm	30	0.02 in	Floating Receptacle	2	Surface Mount	0.187 in	Gold	Board Guide Solder Retention
KYOCERA AVX 245655030700829+T	7 mm	30	0.02 in	Floating Receptacle	2	Surface Mount	0.226 in	Gold	Board Guide Solder Retention
KYOCERA AVX 245655080700829+T	7 mm	80	0.02 in	Floating Receptacle	2	Surface Mount	0.226 in	Gold	Board Guide Solder Retention
KYOCERA AVX 245655100700829+T	7 mm	100	0.02 in	Floating Receptacle	2	Surface Mount	0.226 in	Gold	Board Guide Solder Retention
KYOCERA AVX 245655050400829+T	4 mm	50	0.02 in	Floating Receptacle	2	Surface Mount	0.108 in	Gold	Board Guide Solder Retention
KYOCERA AVX 245655040600829+T	6 mm	40	0.02 in	Floating Receptacle	2	Surface Mount	0.187 in	Gold	Board Guide Solder Retention
KYOCERA AVX 245655040700829+T	7 mm	40	0.02 in	Floating Receptacle	2	Surface Mount	0.226 in	Gold	Board Guide Solder Retention
KYOCERA AVX 245655060400829+T	4 mm	60	0.02 in	Floating Receptacle	2	Surface Mount	0.108 in		Solder Retention
KYOCERA AVX 245655050600829+T	6 mm	50	0.02 in	Floating Receptacle	2	Surface Mount	0.187 in	Gold	Board Guide Solder Retention
KYOCERA AVX 245655040400829+T	4 mm	40	0.02 in	Floating Receptacle	2	Surface Mount	0.108 in	Gold	Board Guide Solder Retention
